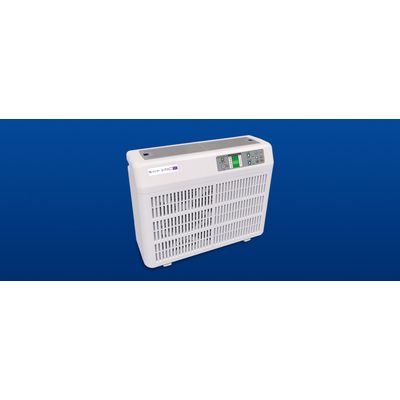

UVDI - Model V-PAC SC -Air Purification Device

Proven Efficacy
Proven to inactivate 99% of airborne MS-2 virus, a harder-to-kill surrogate for viruses such Influenza A and coronavirus, in 45 minutes in independent laboratory testing.

Safe for Use in Occupied Settings

• Does not produce ozone or harmful contaminants
• CARB certified
• ETL-listed

Powered by Multi-Stage Cleaning Technology

1. When UV light illuminates the titanium di-oxide (Ti02) coated photocatalytic oxidation grid, an activation process occurs.
2. The activation generates highly reactive hydroxyl radicals and superoxide ions resulting in a strong chemical “oxidizing” reaction between the supercharged ions and gaseous pollutants such as VOCs and odor molecules.
3. This breaks the pollutant down into trace amounts of carbon dioxide and water molecules, thus purifying the air.

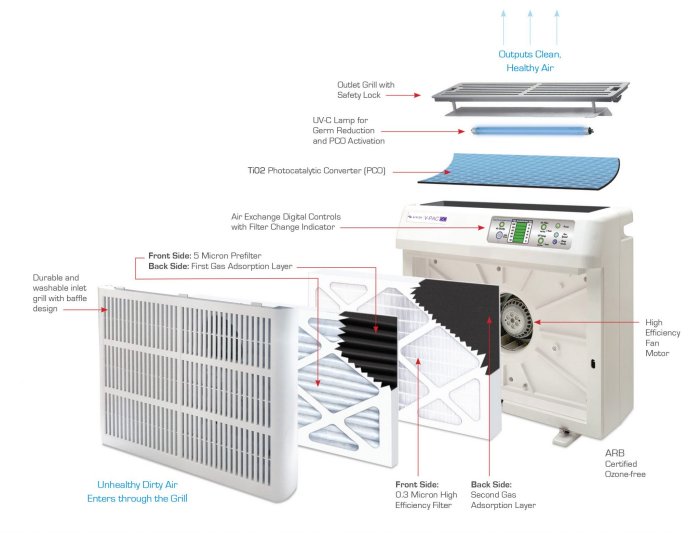

Stage 1: 5 micron Prefilter
A 5 micron prefilter removes all particles from the air larger than 5 microns such as dust, dander, and pollen. The prefilter extends the life of the high efficiency filter and protects the gas adsorbing media from dust coating and fouling.

Stage 2: Gas Adsorption Layer
First gas adsorption layer (Black) on the back side of the filter is a specially formulated gas adsorption media that adsorbs exhaust fumes, organic hydrocarbons, paint solvents, chlorine, cleaning chemicals and other fumes.

Stage 3: 0.3 micron High Efficiency Filter
High efficiency filter that removes contaminants as small as 0.3 microns in size such as allergens, pollen, bacteria, viruses, spores and tobacco smoke.

Stage 4: Gas Adsorption Layer
A second gas adsorption layer (Black) on the back side of the filter is a specially formulated gas adsorption media that adsorbs exhaust fumes, organic hydrocarbons, paint solvents, chlorine, cleaning chemicals and other fumes.

Stage 5: UV-C Lamp
Germicidal ultraviolet light (UV-C) is highly effective in destroying viruses and bacteria too small to be filtered out by a high efficiency filter. Ultraviolet technology combined with photocatalytic oxidation increases effectiveness of air disinfection.

Stage 6: Photocatalytic Converter
The key to photocatalytic oxidation is anatase TiO2, a semiconductor catalyst material that becomes highly reactive when exposed to specific wavelengths of ultraviolet light. This chemically oxidizes the odor molecules and converts them into trace amounts of carbon dioxide and water molecules.

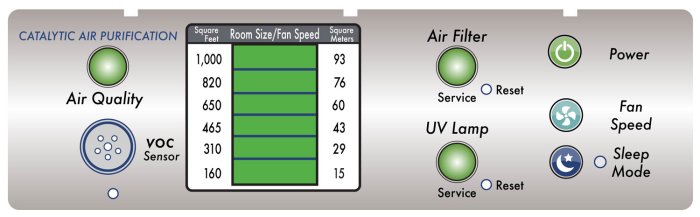

The V-PAC SC’s embedded Air Exchange Monitor (AEM) provides the flexibility to change the air in a room to clean it. To achieve faster air purification by increasing room air flow, the fan speed can be increased to the maximum level.

• Automatically communicates when filter or lamp replacement is necessary.
• Contains a VOC sensor which detects the presence VOCs. If VOCs are detected, the Air Exchange Monitor (AEM) automatically adjusts fan speed to reduce them.

• Model Name: V-PAC® SC
• Number: 41-1311-01
• Stage 1 — Prefilter: 5 Micron Rating
• Gas Adsorption Layer: Activated Carbon
• Stage 2 — High Efficiency Filter: 0.3 Micron Rating
• Gas Adsorption Layer: Activated Carbon
• PCO Catalyst: Titanium Dioxide (TiO2)
• Dimensions: 21.5" W x 18.5" H x 8" D
• Weight: 23 lbs
• Sound Level: 48-68 dBA
• Maximum Air Flow: 170 CFM
• Germicidal UV-C Lamp: 254 nanometers wavelength
• Line Voltage: 115 V/60 Hz
• Maximum Watts: 106 watts
• Maximum Amperes: .89 ampere
• Certifications: ETL and CARB
