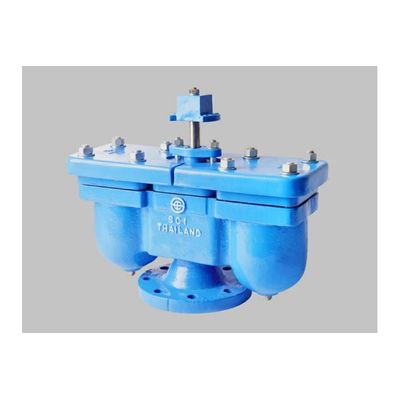

SCI - Air Valve

SCI AIR VALVES have been especially designed to allow the most efficient method of releasing or admitting air during the filling and emptying pipelines or vessels and the release of air accumulating in pipeline during normal working conditions.

Most popular related searches

Special Features

Rubber orifices : Seal from very low to high working pressure ( 0.1-25.0 bar )
ABS float : Proven long lasting material. Specific gravity ( 0.75-0.80 )
No protruding levers : This features reduce maintenance and servicing to a minimum.
No premature closing
Standard : Comply with JIS B 2063, TIS 1368, BS EN 1074-4

Small Orifice

Automatically releases accumulated air in pipeline.

Large Orifice

Automatically releases or admits large volume of air for efficient filling or emptying of pipelines to protect against vacuum or pipeline damage.

Combination And High Speed

The combination of small and large orifice becomes a single unit.

Combination With Intergral Isolating Valve

The combination of small and large orifice plus integral isolating valve becomes a single unit.

Combination For Waste Water

Combination (small and large orifices) air valve, kinetic air/vacuum valve and automatic air release valve for sewage and waste water

SCI - Air Valve

Details
