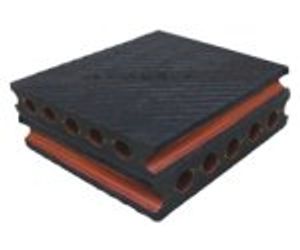

Vibro - Model EP -Antivibration Elastic Pad
Vibro-EP is a product of specialised research and it has been produced in this form since 1989. It is made from first-rate quality elastomeric material combined with special substances for its further improvement.Its longitudinal holes increase the provided compression and improve vibration absorption. They can be used in multiple layers with the use of steel plate in between, in order to reduce the natural frequency down to 4 Hz (Vibro-EP Complex)
Its longitudinal holes increase the provided compression and improve vibration absorption. They can be used in multiple layers with the use of steel plate in between, in order to reduce the natural frequency down to 4 Hz (Vibro-EP Complex).
- Vibration control
- Passive machinery protection
- Easy to install
- Suitable for large loads
- Applications
- Antivibration supports:
- Air-compressors - air conditioning units – pumps – fans – generator sets – cutting machines etc.
- Floating supports:
- Industrial floors – elevators – printing machines – testing machines etc.

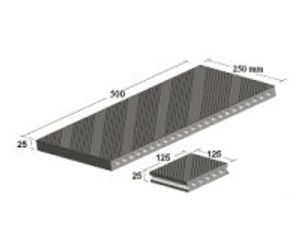

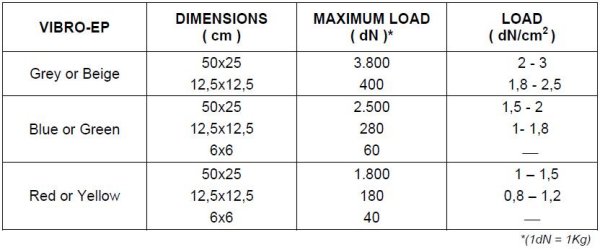

50 x 25 x 2,5 cm - 12,5 x 12,5 x 2,5 cm - 6 x 6 x 2,5 cm
- Elastomeric special rubber compound: (grey - blue - red)
- Neoprene: (beige - green - yellow)
Due to its high abrasion coefficient, Vibro-EP does not normally require to be fixed using screws, glue or plugs, except in special cases.
It can be placed under the metal supports of machinery or under concrete floating inertia supports, in single or multiple layers.
- Antivibration support of professional printer
- Machinery antivibration mounting
