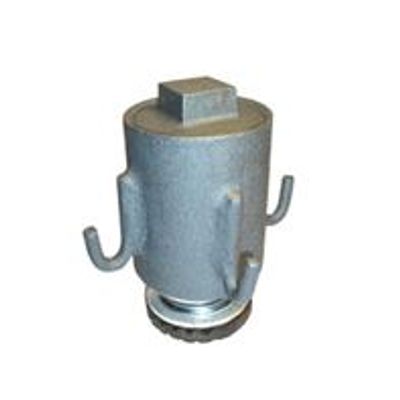

Vibro - Model JS -Antivibration Mount For Concrete Floating Floors

SHARE

Suitable for raised concrete floating floors. Regulation of height. Avoid remaining plywood forms. Monitoring and easy replacement of spring. Combination of spring and rubber, for better acoustical results. Creates an air-gap, beneficial for the sound insulation and the vibration control.

Most popular related searches
vibration control
building vibration
sound insulation
vibration isolation
building control

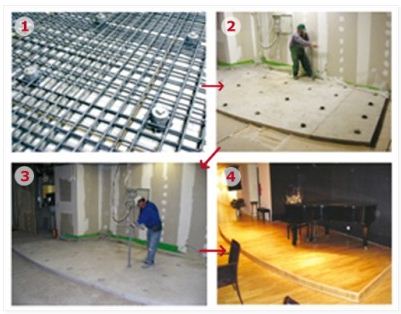

  1. Place a polyethylene sheeting under and all around surface of the concrete floating floor.
  2. Isolate the floating floor from building structure, with a suitable antivibration board, between the floating floor and the wall (e.g. Vibro-strip).
  3. Place the housing of Vibro-JS and its cover plate.
  4. Place reinforcing of the slab and pour the concrete. (Calculations of the concrete’s quality, adequate reinforcement and other requirements must be done from a Civil Engineer).
  5. Place the internal antivibration system of Vibro-JS.
  6. Screw progressively and uniformly the nut of the elevation mechanism, in order to load the springs and raise – regulate the concrete slab at the appropriate height.
  7. Place cover plate.
