ARC - Model PMB PTFE - Membrane Filter

ARC - Model PMB PTFE -Membrane Filter

FromARC Filtration System Ltd

SHARE

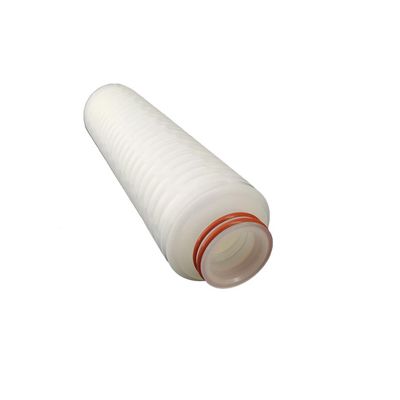

PMB-PF is an absolute air sterile filters,the double layers PTFE membrane provides excellent filtration performance,it use for air, vent sterile filtration, free of surfactants resins, binders and adhesives.

Most popular related searches

membrane filtration

autoclave steam sterilizer

steam sterilizer

steam sterilization

filter membrane

air sterilization

steam autoclave

double layer membrane filtration

Outer Cage: Polypropylene
Inner Cage: Polypropylene
Endcaps: PRSS304.SS316
O-ring & Gasket: Silicone, EPDM F
ilter Media: PTFE Membrane

Ratings 0.1,0.2 micron
Absolute Filter Rating
High surface area
Long service life
FDA listed all polypropylene components

OD:2.7"(70mm)
Length:10",20",30",40"

Normal Operation Temperature: up to 55°C
Max Operation Temperature: 90°C△P≦1Bar
Maximum Pressure differential: 4.2bar at 25°C
Maximum Reverse pressure differential: 2.1 bar at 25°C
Filtration Area: >0.6m2
Forward Online Steam Sterilization( 1Bar): 135°C
Autoclave Steam Sterilization: 121°C

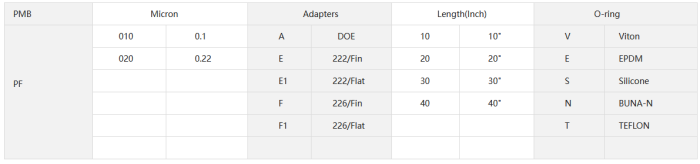

Part No=PF+Micron+Adapters+Length+O-ring
EG: A 40 inch 0.22um filters with 226/Fin adapters and Viton O-ring
The Part NO:PF022F40V
