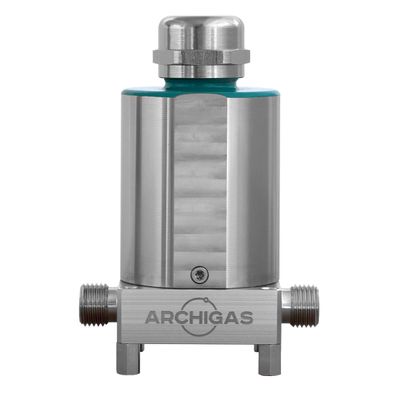

Archigas - Model TCD3000 -Transmitter
The TCD3000 Transmitter is an advanced solution for precise hydrogen detection based on thermal conductivity. It is designed for bypass measurements where in-process detection is not feasible or desired, especially useful for applications with lower flow rates. The device exhibits high precision and rapid response, with industry-leading measurement speeds of less than 30 ms and a wide range from ppm levels up to 100 vol.%. Suitable for harsh environments, it can withstand up to 200 bar of pressure and is optimized for use in humid conditions. Its robust construction and precise measurement capabilities make it ideal for use in electrolysers, fuel cells, and hydrogen infrastructure. The transmitter contributes profoundly to occupational safety with its reliable explosion level monitoring, making it a long-lasting investment expected to serve up to ten years with minimal maintenance.
The more cost-effective and ATEX-free TCD3000 Transmitter is particularly suitable for bypass measurements, when detection in the process is not possible or desired, and for lower flow rates. This particularly compact and robust option for hydrogen detection is also ideal for the precise, fast and sensitive measurement of quasi-binary gas mixtures. It is also based on the principle of thermal conductivity (TCD – Thermal Conductivity Detector), i.e. the technology that is predestined for measuring gases with very different thermal conductivities such as H2 and O2.
-
High precision and speed in hydrogen concentration measurement: The TCD3000 Transmitter is characterised by an industry-leading response time of < 30 ms and a measuring range from a few ppm to 100 vol.%, specially developed for the new requirements of hydrogen infrastructure in the energy and process industries.
-
Particularly robust for demanding environments: Optimised for use in humid environments, the device withstands condensate and water without damage and provides precise measurements up to a pressure of 200 bar – ideal for electrolysers, fuel cells and other hydrogen applications.
-
Maximum safety, minimum maintenance: With fast and reliable explosion level monitoring, the TCD3000 Transmitter significantly increases occupational safety. The device is a long-term investment with an expected service life of up to 10 years.
- Adaptability meets economy: The extremely compact TCD3000 Transmitter saves space and costs. Thanks to it, a wide variety of gas mixtures can be measured without additional sample preparation – a highly efficient solution that outperforms the competition in terms of performance and price.
- Dimensions with connectors; Weight : H: 78 mm, L: 72 mm, W: 35 mm; 430 g
- Gas connection : 6 mm
- Power supply : 24 ±25% VDC, < 5 W
- Analog Output : 4-20 mA potential-bound, RL ≤ 750 Ω
- Serial interface : RS485, baud rate 38400 / data bits 8
- Ambient temperature range : -40 to +90 °C
- Sample gas temperature : -40 to +90 °C / +125 °C
- Reaction time : ≤ 30 ms
- T90 time : < 1 s
- Warm-up time : < 1 min
- Sample gas pressure : 0,9 to 200 bar (absolute)
- Sample gas flow : 0 to 120 l/h (higher flow rates on request)
- Noise : < 10 ppm
- Measured value drift : < 100 ppm / week
- Repeatability : < 100 ppm
- Temperature influence : < 50 ppm / 10 K
- Influence of sample gas pressure at zero point : < 25 ppm / 10 hPa; ab 1 MPa < 2 ppm / 10 hPa
- Influence of sample gas pressure with deflection gas : < 100 ppm / 10 hPa; ab 1 MPa < 10 ppm / 10 hPa
- Influence of sample gas flow rate at zero point : < 25 ppm / 10 l/h
- Influence of sample gas flow rate with deflection gas : < 100 ppm / 10 l/h
- Multiple adjustments possible for one sensor : Several linearisation curves, different measuring ranges and other gas pairs can be stored on one device (manual switching)
- Pressure compensation : Thermal conductivity is pressure-dependent, therefore a constant pressure must be present during the measurement. If the pressure is not constant, the error can be eliminated by an additional pressure measurement. We can provide a compensation curve on request
- Customised settings possible that go beyond the technical specifications : Customised adjustment for e.g. higher gas temperatures, radioactive environments, particularly low flow rates
- Higher pressure ranges : Settings for high pressure ranges >200 bar also available on request
- Express delivery possible : Depending on capacity and agreement, delivery at short notice is also possible
- Other connections possible : Other connection options are available on request
