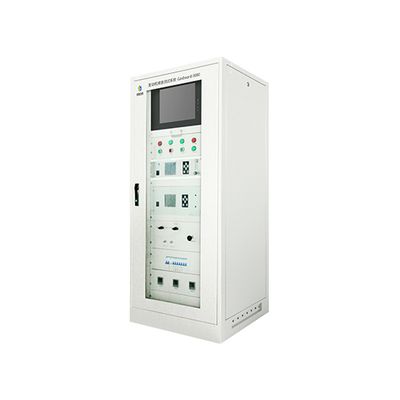

Cubic Instruments - Model Gasboard-9080 -Automobile Emission Analysis System
Gasboard-9080 Automobile Emission Analysis System adopts high-precision hydrogen flame ionization detection technology (HFID), non-spectral infrared gas analysis technology (NDIR), and long-life electrochemical sensor technology (ECD), to test THC, NOx, CO, CO2, O2 and other gases, provide complete system testing solutions for engine exhaust direct detection for different applicationsMost popular related searches
vehicle emissions analysis
emissions analysis system
flame ionization detection
vehicle emissions gas analyzer
emissions analysis
analysis system
sample gas
emissions gas analyzer
on-site emissions
hydrogen flame detection
- Adopts high-precision hydrogen flame ionization detection technology to test THC, and high-temperature heat tracing during the whole measuring process to prevent condensation loss, more accurate measurement meets large-scale, high-precision micro-current signal detection.
- Adopts constant-power heating sampling line, and configure the temperature controller to control the pipeline temperature, avoid gaseous pollutants condensation during sample gas transmission, ensure great measuring accuracy.
- Using independent intellectual property rights and international PCT patented micro-fluid infrared dual-chamber technology, non-dispersive ultraviolet absorption method (NDUV) analysis technology to detect NOx, CO, and CO2 concentration. The system obtains strong stability and is less affected by external interference and drifts, no cross interference between multi-component measurement gases with high measurement accuracy.
- Adopt German imported sampling pump to transmit power, configure a first-stage filter and electronic condenser to remove moisture from the sample gas, and implement two-stage filtration to ensure that the sample gas meets measuring requirements and ensure the instrument running online for long time.
- Supports network and system extension. Real time data can be transmitted to the higher-level centralized control system through a variety of output interfaces, providing real-time basis for remote and on-site emissions monitoring.
- Small General Purpose Engine
- Heavy-duty diesel engines for off-road use
- Type approval of mobile machinery diesel engines and engines such as marine diesel engines
- Production consistency inspection and emission testing
