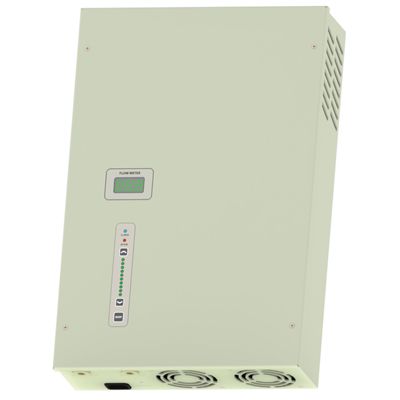

AZCO - Model VMUS-K3 -Wall Mountable Ozone Generator
The VMUS-K3 is a wall mountable Ozone generator which produces up to 10 g/hr of ozone @ 16 l/min of dry air. This unit is able to produce 2.5 times the amount of ozone as the VMUS-4 in a relatively small form factor, making this unit very versatile. The VMUS-K3 is an industrial machine designed to operate 24 hours a day 7 days a week for 10+ years and carries a 3 year warranty.
Most popular related searches
ozone generator
ozone generation
flow meter
ozonation
flow switch
air dryer
corona discharge
process gas
air pump
corona discharge ozone generator
- ~10 g/hr Output
- Wall mountable
- Standard flow meter
- Easy to install and operate
- Powder coated Al. cabinet
General:
- Voltage [VAC, 50/60Hz]: 100-240
- Power Consumption [W]: 220
- Ambient Temperature [°C]: 2 to 40
- Relative Humidity [%]: 92 Non condensing
- Mass [kg]: 8.7
- Dimensions [LxWxH][mm]: 466 x 316 x 102
- Installation: N/A
- Warranty: 3 year
Ozone:
- Generation Process: Pulse, Corona Discharge
- Process Gas [bar]: Dry air or Oxygen. Maximum pressure ±0.36
- Production On Dry Air: ~10g/hr
Options:
- Internal Air Pump: N/A
- Adjustable Output: S
- Interlock: O
- Flow Meter: S
- Oxygen Ready: N/A
- Flow Switch: S
- Built-in Air Dryer: N/A
Safety:
- CSA File #:
- ETL File # [Canadian & US]:
- UL File #:
