Bale Stack Downenders

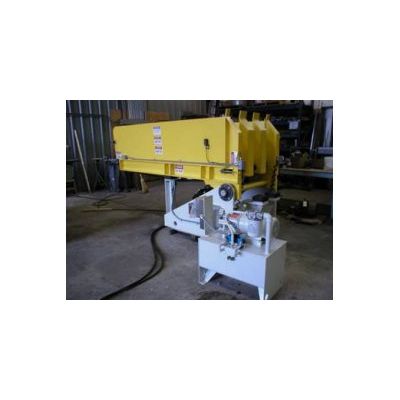

The Downender accepts a bale stack either directly or from the stacked bale storage conveyor. It then rotates it to a horizontal position and conveys it to the next unit. It is hydraulically operated with an integral 5 HP hydraulic power unit and is rotated on a pivot by Parker hydraulic cylinders, operating at 1500 PSI.
Most popular related searches
hydraulic cylinder
belt conveyor
chain belt conveyor
chain conveyor belt
baling system
chain conveyor
stacking conveyor
This unit can also be used to increase the height of the bale line from the accept level as it rotates.
The Downender bed includes an H-78 chain or belt conveyor to move the bale stack to the next unit, powered by a 1-1/2 HP drive. The Downender is provided with side fences for safe operation.
