Setra - Model CS100 -Barometric Pressure Sensor

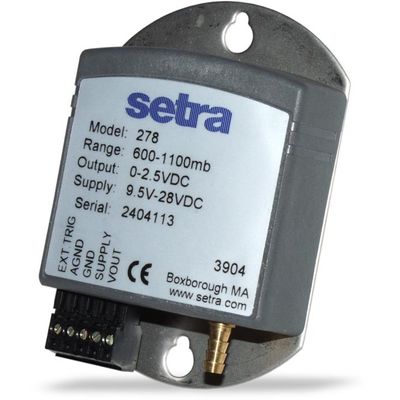

The CS100 is a Campbell Scientific version of Setra`s model 278 barometer. It uses Setra’s Setraceram capacitive sensor and IC analog circuit to measure barometric pressure. The CS100 iincludes a 0.76 m (2.5 ft) cable and a terminal strip for data logger power and signal connections.

The CS100 is encased in a stainless-steel and polyester case fitted with an 1/8 in. barbed fitting for pressure connection. It includes an internal switching circuit that allows the data logger to power the barometer only during measurement, which reduces power usage.

• Optimized to mount in Campbell Scientific enclosures
• Low power consumption
• Three-year warranty
• 500 to 1100 hPa (mBar) and 800 to 1100 hPa (mBar) versions also available by special order—contact Campbell Scientific
• Integral switching circuit limits power consumption to measurement cycle

• Measurement Description: Barometric pressure
• Signal Type/Output: Analog voltage
• -NOTE-: 1 hPa = 1 mBar
• Pressure Range: 600 to 1100 hPa
• Long-Term Stability: ±0.1 hPa per year
• Response Time: < 100 ms
• Resolution: ±0.01 hPa
• Excitation: 9.5 to 28 Vdc
• Elevation: ~609.6 m (2,000 ft) below sea level (as in a mine) to 3,657.6 m (12,000 ft) above sea level
• Accuracy:
• Accuracy refers to the root sum squared (RSS) of end point non-linearity, hysteresis, repeatability, and calibration uncertainty.
• ±0.5 hPa (@ +20°C)
• ±1.0 hPa (@ 0° to 40°C)
• ±1.5 hPa (@ -20° to +50°C)
• ±2.0 hPa (@ -40° to +60°C)
• Linearity: ±0.4 hPa
• Hysteresis: ±0.05 hPa
• Repeatability: ±0.03 hPa
• Signal Output: 0 to 2.5 Vdc
• Warm-up Time: < 1 s
• External Trigger Voltage:
• 0 Vdc (sleep mode)
• 3 to 28 Vdc (operating mode)
• Current Consumption:
• < 3 mA (active)
• < 1 µΑ (sleep mode)
• Temperature Range: -40° to +60°C
• Cable Diameter: 0.8 cm (0.3 in.)
• Cable Length: 0.8 m (2.5 ft)
• Dimensions: 9.1 x 6.1 x 2.5 cm (3.6 x 2.4 x 1.0 in.)
• Weight: 135 g (4.8 oz)
