BBProtect - Resistant Composite Plastic

SHARE

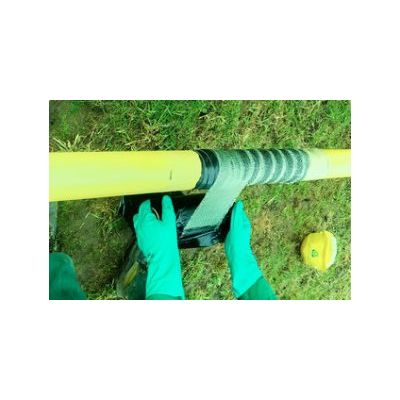

The ready-to-install material is manufactured accordingly in our works, wrapped onto the workpiece on-site by hand and then cured by UV light. The range of possible applications of our BBProtect® is very wide. Sensitive welding seams of pipes can be protected by it for instance or even attached full-surface to the pipe.

Most popular related searches
pipe relining
auger boring
horizontal drilling
UV curing
ultraviolet lamp
environmental process
UV curing lamp
waterproofing
construction drilling

The GFRP laminates of the BBProtect® distinguish themselves by high strength and an easy processability. As a specialist for prepregs of all types, we developed a special semi-finished product in 2011 for the protection against mechanical damage of pipes that is absolutely waterproof. The slight shrinkage of the material during the curing process means that the material will adhere to almost every surface.

In situations where high indentation, abrasion and impact resistance is a must, BBProtect® provides the optimal protection.

  • Ready-to-install prepreg for optimal application at the construction site : Horizontal drilling
  • No mixing of resin components at the construction site : Lang pipe relining
  • Material thickness 0.8 mm : Burst lining
  • Curing by UV handheld lamps or sunlight : Auger boring technique
  • 26 weeks storage stability : Base layer for pipe clips
  • Ground-to-air transition points
  • The GFRP prepreg is manufactured ready-to-wrap.
  • The fully assembled product facilitates easy handling at the construction site.
  • The GFRP prepreg is highly adaptable to the respective material.
  • Excellent curing speeds.
  • High durability makes it possible to use minimal wall thicknesses.
  • Environmentally friendly processes, as chemical additives are unnecessary.
  • No pipe casing necessary during curing.
  • Density ISO 1183-1 : 1,89 g/cm3
  • Compressive strength EN ISO 604 : 350 N/mm2
  • Impact strength ISO 179 : 110 KJ/m2
  • Hardness DIN EN 59 : > 45
  • Glass-fibre content DIN EN ISO 1172 : 65 %
  • Volume shrinkage ISO 2577 : 2,50 %
  • Styrene emission : < 20 ppm : < 20 ppm
