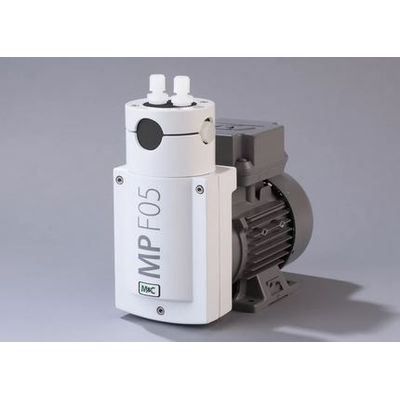

M&C - Model MP-F05 -Bellows Pump
FromM&C TechGroup
Analytical bellows sample pump MP-F05, material: PTFE, capacity: 320 Nl/h with counter-pressure of -/+ 50 mbar on the vacuum and pressure side, connections: G 1/4" f, 230 V/230 V/50/60 Hz, IP54. Capacity: 5 Nl/min (320 Nl/h) with a counter-pressure of -/+ 50 mbar on the vaccuum and pressure side , power: 115 V/60 Hz or 230 V/50 Hz
Most popular related searches
bellow pump
sample gas pump
gas sampling pump
gas sampling analysis
sampling pump
gas sampling
corrosive gas
sample gas
head pump
analytical pump
- Full PTFE bellows pump
- Pump head can be rotated in 90° steps and connected to the gas line from the top or side
- Max. capacity: approx. 5 Nl/min with a counter-pressure of ±50 mbar on the vacuum and pressure side
- Max. operating pressure range: 0.4 to 2.5 bar abs.
- Corrosion-resistant
- 100 % lubricant-free
- High level of gas tightness
- Long service life
- Power: 230 V
- Material of sample-contacting parts: PTFE, PFA, FEP
- Optionally: upper part of the pump head out of stainless steel
- Type: Bellows
- Explosion-proof: No
- Heating: No
- Flow rate: ≤ 300 Nl/h
- Material: PTFE
- Power supply: 220?240 V
The bellows pumps type MP-F are suitable for corrosive gases. Their performance and construction are specially geared to meet the requirements of analytical technology.
