Berolina - HF-Liner

SHARE

Reduction of the structurally required wall thickness due to higher mechanical characteristics.

Most popular related searches
gravity sewer
reinforcement material
liner system
protective liner

Faster curing and easier handling
Due to the special construction of the glass sheets and higher glass content, the Berolina-HF-Liner achieves higher mechanical characteristics resulting in a reduction of the structurally required wall thickness compared to the normal Berolina-Liner. The resulting lower weight allows easier handling.

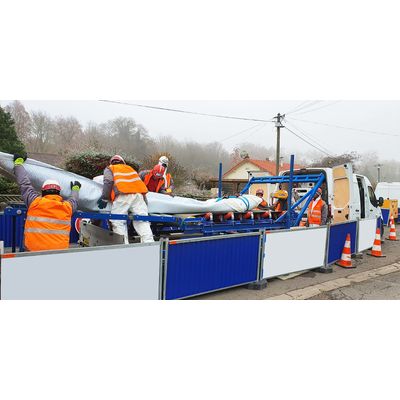

The Berolina-HF-Liner is also available with Integrated Enhanced Security (IES) – a smooth slip film is no longer necessary for the pulling in with the result that installation time can be reduced by up to 60 minutes.

Berolina-HF-Liner: Area of application

Gravity sewers

  • Circular profiles: ID 400 (16“) – ID 1,600 (63“)
  • Ovoid cross-sections: 350/525 mm (14“/21“) – 1,200/1,800 mm (48“/71“)

Other sizes on request.

Berolina-HF-Liner with IES: Area of application

Gravity sewers

  • Circular profiles: DN 150 – DN 600
Integrated Enhanced Security (IES) can also be offered as a substitute for the conventional smooth slip film, for less damaged sewers. The installation time can be reduced.
Berolina-HF-Liner: Advantages
  • Higher mechanical characteristics compared to the Berolina-Liner
  • Reduction of the structurally required wall thickness compared to the Berolina-Liner
  • Seamless design
  • Particular extensibility
  • Ready for installations up to 500 metres (DN 200 – DN 300 up to 1,000 meters)
  • Can be stored for at least 5 months
  • Fast curing (particularly compared to felt liners)
  • Smooth surface
  • Fast curing (particularly compared to felt liners)
  • Abrasion protection layer
  • Bridging small profile and cross-section changes
  • Resin types depending on requirements (polyester, vinyl ester, polystyrene-free)
  • Quality management in accordance with EN ISO 9001:2015
Berolina-HF-Liner with IES: Additional advantages

Integrated Enhanced Security (available up to DN 600)

  • Can be a substitute for smooth slip film
  • Reducing installation time
Integrated Enhanced Security (IES) can also be offered as a substitute for the conventional smooth slip film, for less damaged sewers. The installation time can be reduced.
Reinforcement material

Non-crimp complex E-CR according to EN 14020-1, EN 14020-2 and EN 14020-3

Resins

Unsaturated polyester resins (UP resins)

  • Type 1140 according to DIN 16946-2
  • Group 3 according to DIN 18820-1
  • Group 4 according to EN 13121-1

Vinyl ester resins (VE resins)

  • Type 1310 according to DIN 16946-2
  • Group 5 according to DIN 18820-1
  • Group 7 B according to EN 13121-1

Styrene-free resin

Technical data

Approved for UP and VE resins

Density after curing (EN ISO 1183-2): 1.59g/cm³ (± 0.5 g/cm³)
Glass fibre content (EN ISO 1172 / by mass): 53% (± 8%)
Glass weight per unit area (per mm load-bearing wall thickness)*: 900g/m² (+150/-100g/m²)

Short-term ring stiffness (EN 1228)*: ≥ 17,000 N/mm²
Short-term modulus of elasticity (EN ISO 178)*: ≥ 17,000 N/mm²
Short-term flexural strength (EN ISO 178)*: ≥ 280 N/mm²

Reduction factor for long-term values (EN 761): A = 1.19

Long-term ring stiffness (EN 1228)*: ≥ 14,200 N/mm²
Long-term flexural strength (EN ISO 178)*: ≥ 235 N/mm²

Laminate design: Multi-layer, seemless and overlapping in longitudinal direction; overlaps are offset

Linear expansion during calibration: ~ 0.0%
Allowable diameter tolerances of the host pipes: DN ≤ 800: ± 5%; DN > 800: ± 2%
