AGC Instruments Ltd.

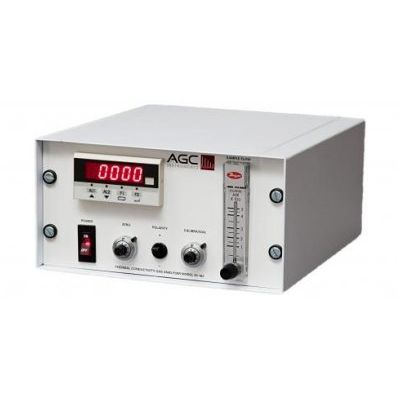

- Model 20 Series - Binary Stream Gas Analyser

From

0

For % measurement of two gases, the 20 Series Binary Stream Gas Analyser is the workhorse unit which is easily adapted for the many applications that they need to be used. If you want an instrument for non-continuous analysis of a binary mixture in an Industrial Gas process, or a gas mixing application to identifying the contents of a gas cylinder, then the 20 Series Gas Analyser using the latest Thermal Conductivity Detector (TCD) is most suitable. For more information on our 20 Series Binary Stream Gas Analyser please contact us directly.

Principle of Operation
Using Hotwire or thermistor elements, an analyser which has accuracy and sensitivity, coupled with a robust platform is achieved with a response time of < 30 second (Tw).

Produced as bench top Gas Analyser {option for 19' rack platform), with all stainless steel tubing with Swagelok fittings allows this analyser to be used in many environments. We customise each analyser to meet the specific requirements of our customer. Utilising the option of a pump, the analysis of samples where the gas pressure is very low is possible.

What does the 20 Series offer
The Binary Stream Gas Analyser from AGC Instruments is used for the analysis of binary streams of industrial gases, cylinder identification & atmosphere control applications on a non continuous basis.

Models Available
Two types are available (1) single pass (sealed reference/gas economical) analyser or a (2) dual pass (flowing reference/more thermally stable) analyser. Both with a flowmeter & needle valve, a pump (optional), and a 5 way valve for zero, span/calibration & sample gases, the units are built for rugged use and simple to use.

  • Air in He
  • H,inN,
  • Ar in He
  • CO, in N^/He
  • Freon in Air
  • Hydrocarbons in He
  • SO^/NHjinAir .      H^inO,
  • Natural Gas in Air
  • N2 in Ar
  • 02 in Ar
  • OainHa
  • & many others

  • Air Separation Units
  • Air Liquefaction Plants
  • Gas Blending equipment
  • Helium Gas Recovery
  • Helium Liquefaction Plants
  • Helium Gas Purification
  • Industrial Gas Production Units
  • Chemical Plants
  • Refineries
  • Refrigeration Plants
  • Ammonia Plants

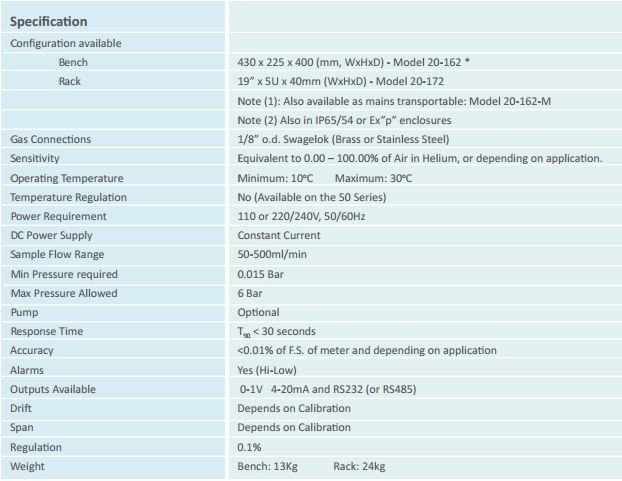

The TCD consists of a block (usually metallic) containing a cavity through which the gas flows. Four sensing elements which are connected to form an electrical Wheatstone bridge circuit. These elements are miniature Rhenium-Tungsten filaments, which are mounted in a metallic cell block. A diffusion type thermal conductivity cell is used in this analyser. This cell contains a sample and reference gas flow geometry. Two filaments are installed in each flow system. An electrical current from a DC power source heats the elements.

To balance the instrument, the reference gas must be passed through both the sample and reference flow systems. When a sample gas of different composition is introduced into the sample system, a change in the rate of heat loss will occur. This change will cause the element resistance to change, causing the Wheatstone bridge to unbalance. The output represents the concentration of the sample gas being analysed and displayed directly on the digital meter.

For High Purity Gas Analysis, Stainless Steel fittings and tubing is used throughout. For corrosion resistance systems, all wetted surface parts will be manufactured in corrosion resistant materials such as Nickel or Monel. The Display used will indicate in % or ppm of the measured component.

With features such as 4-20mA, Hi-Low Alarms, RS232 or RS 485 available, the 20 Series will display and transmit all the relevant information to ensure monitoring of the process is accurate and continuous. This versatile Gas Analyser can be provided in an IP55 or an Ex”p” enclosure for Zone 0 and Zone 1 operation. Please contact AGC Instruments for more information.
