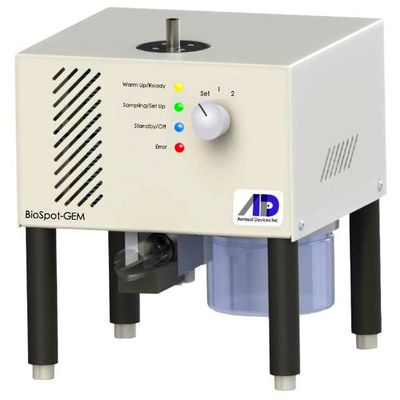

BioSpot-GEM - Model BSS302 -Bioaerosol Sampler System

• High quality particle sampling onto a swab
• Collects 10nm to 10µm particle sizes with equal effectiveness
• Small, lightweight and quiet operation
• Samples directly onto stabilizer (patent pending) for instant DNA/RNA preservation
• Concentrated, contamination free collection
• Analysis compatible with virus/microbial testing methods, such as PCR and sequencing

• Collects viruses, bacteria, fungal spores, toxins, proteins, allergens
• Non-invasive collection of particles from exhaled breath
• Infectious disease surveillance and IAQ mitigation assurance
• Suitable for all indoor public, industrial, medical and agricultural environments

A laminar-flow condensation growth tube (CGT) encapsulates airborne particles into liquid droplets and gently deposits the droplets onto surface. This technique substantially improves the efficiency and quality of collection of bioaerosols (less than 10nm to 10um) sampling directly onto a sterile stabilized swab.

Whereas other techniques suffer from desiccation, mechanical stress, thermal stress and re-aerosolization, the BioSpotGEM sampler is quiet and efficiently and safely collects particles in public settings without distraction.

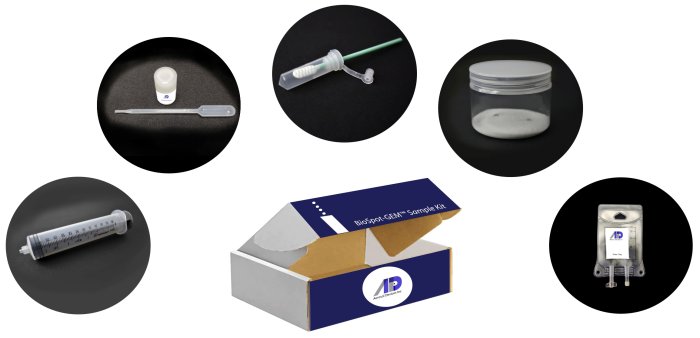

The BioSpot-GEM sampler includes a starter sample kit for immediate use (8 samples).

Kits and individual accessories are available at aerosoldevices.com/store.

• Particle Size Range:
• Collection Substrate: Sterilized commercial swab
• Collection Efficiency: >95%
• Maximum Particle Concentration: Zero to 105 particles/cm3
• Condensing Fluid: Water (distilled water or higher purity)
• Sample Flow Rate: 1.2 L/min
• Sampled Aerosol Conditions: Non-corrosive, 0 – 40 degrees C

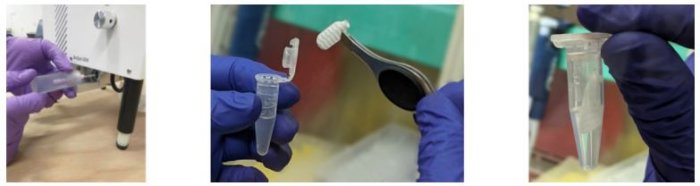

• Sample Method: Sterile swab can be pretreated with genomic preservative
• Sample Duration: 2 preset options user selectable from 1 minute to 24 hours
• Controls: 3-position dial for setup and sample start duration (2 preset times)
• Status Indicator Lights: 4 color LED indicating warm up/ready (yellow), sampling/setup (green), standby/off (blue), error (red). See manual for details.
• Communications:
• • USB serial communications for setting sample time options; output for sampling parameters and instrument status
  • Firmware updatable with flash drive
• Environmental Operating Conditions
• • 10 – 35 degrees C
  • 10 – 95% RH, non-condensing
• Sample Inlet: 10mm OD SS tube
• Sample line cleaning: Ozone, alcohol rinse, hydrogen peroxide
• Instrument Decontamination: Recommend vaporized hydrogen peroxide
• Power: 90-240 VAC/50-60 Hz; power supply output voltage is 12.0 V DC and output current is TBD (maximum)
• Noise: Quiet for unobtrusive sampling
• Case Dimensions: 9.5” H x 8.4” W x 8.0” D (24.1cm x 21.3 cm x 20.3cm)
• Weight: 10 lbs (4.5kg)
