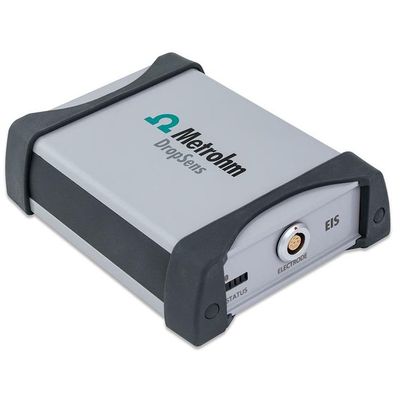

Metrohm - Model µStat-i 400 - STAT-I-400 -Bipotentiostat/Galvanostat/Impedance Analyzer (EIS)
FromMetrohm AG
μStat-i 400 is a portable BiPotentiostat/Galvanostat/Impedance Analyzer (EIS) that can be applied for Voltammetric, Amperometric, Potentiometric and EIS measurements and can be used with one- or two-working electrodes configuration. Li-ion Battery powered, it can be easily connected to a PC via USB and Bluetooth.
Most popular related searches
impedance analyzer
galvanostat
bipotentiostat
potentiostat galvanostat
potentiostat/galvanostat
potentiostat
voltammetric
electrochemistry
portable analyzer
- Operating modes: Bipotentiostat; Potentiostat; Galvanostat; EIS
- PC interface: Bluetooth®; USB
- Power: Li-ion Battery (2300 mAh); USB; DC charger adaptor compatible (5 V)
- Potential range in volt: ±4 V
- Maximum current in Ampère: ±40 mA
- Number of current ranges: 8
- Number of current ranges remarks: ±1 nA to ±10 mA
- Number of potential ranges (galvanostat): 2
- Number of potential ranges remarks (galvanostat): ±100 mV to ±1 V
- Multichannel instrument: NO
- Maximum number of channels: 1
- Maximum number of WE sharing AUX and REF: 2
- Potential accuracy: ±0.2%
- Current accuracy: ≤0.5 % of current range at 100 nA to 10 mA
- Potential resolution: 1 mV
- Current resolution: 0.1 % of current output range
- Measured potential resolution: 0.012 % of potential range
- Measured current resolution: 0.025 % of current range (1 pA on lowest current range)
- External inputs/outputs: Iout, Eout; 2 Analog inputs; 1 Analog output; 2 Digital input/outputs; TX, RX, RTS signals for RS232 connection
- Dimensions: 100 x 36 x 132
- Weight of the instrument in kg: 0.54
