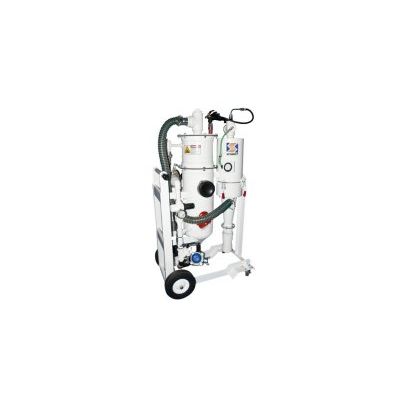

Schmidt - Model MiniBRS -Blast and Recovery Systems
The miniBRS system is a compact and easily maneuverable abrasive blaster that blasts and then recovers spent abrasive, contaminants and dust in the same step, eliminating the need for containment. Unlike other systems on the market, the miniBRS has an ergonomic design, a lightweight yet durable blast head and smaller diameter, lighter weight hoses that are sized to match the system—all to make the miniBRS exceptionally easy and comfortable to use. Operator fatigue is reduced and productivity is higher with this system. Designed to deliver powerful performance over a range of blasting pressures in a compact package. Blast and recover at up to 200 feet away from the unit. Operates on just a 185 cfm compressor.
Most popular related searches
dust collector filter
dust collector
differential pressure gauge
filter cleaning
vacuum pump
recovery blasting system
dust separator
dust separation
blasting system
tungsten carbide
- Blast pattern:3/4" to 7/8" using a No. 3 nozzle
- Maximum working pressure:150 psig at 250 °F (10.3 bar at 121 °C)
- Blast hose size:25`, 1/2" diameter hose
- Vacuum hose size:25`, 2" diameter hose
- Electrical requirements:12 VDC (for optional electric deadman blast controls)
- Abrasive capacity:Blast vessel - 0.3 cu. ft. (8.5 L) Reclaim hopper - 0.3 cu. ft. (8.5 L)
- Vacuum system:Pneumatic vacuum pump (eductor)
- Dust collector filter:6" diameter, dry poly-bond
- Weight:335 lbs/152 kg; 450 lbs/205 kg with controls
- Dimensions:60" H x 22" W x 34" L
- 150 psi-rated, 0.3 cu. ft. pressure vessel with integral media screen
- Blast pressure regulator
- 75 cfm eductor (pneumatic vacuum pump)
- Airwash reclaimer
- Secondary cyclonic dust separator
- Dust collector with polyester filter cartridge
- Differential pressure gauge on the dust collector to alert operator to clean filter
- Blowdown wand for cleaning filter
- 25` by 1/2" blast hose assembly
- 25` by 2" vacuum hose
- Blast and recover head assembly with No. 3 nozzle
- TVII abrasive metering valve (tungsten carbide sleeve)
Additional Features:
- Complete system includes everything needed to blast, recover
- contaminants and handle dust and debris. Just add abrasive
- and compressed air
- Quick set-up. Compact and easy to move
- Lightweight work head reduces fatigue and helps ensure
- correct positioning of the blast head against the substrate
- System-matched, small diameter blast and vacuum hoses are lighter and easier to handle
- Includes the industry-leading TVII abrasive metering valve, ComboValve and Auto Air valve
- Easy-access port to remove large debris from screen
- Optional electric deadman blast controls feature the G2E deadman
