InduMar - Model ARO GW -Bore Shield

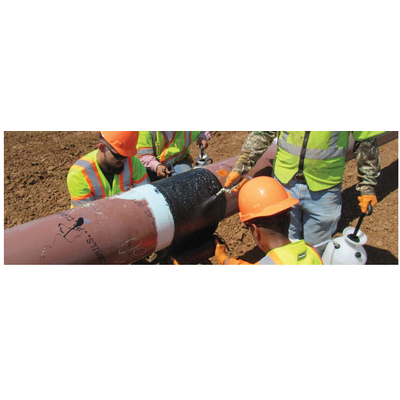

The ARO GW System provides protection from external wear, abrasion, and impact events. The composite system includes a custom weave, heavy fiberglass tape, precoated with a toughened, water-activated urethane resin. The high bond strength provides resistance to shear if pipe is to be pulled and the unique weave of the reinforcement tape enables spiral applications for ease of installation.

BoreShield AR0- GW is supplied at 10" widths in kit sizes designed specifically for pipe diameters ranging from 4"-42\ providing an optimized use of materials and easy of application.

• Diameter specific kits optimize efficient use of materials and cost
• Excellent abrasion, impact, and wear resistance
• Installed over tapes and coatings to protect weld seams
• Superior toughness and resistance to environmental degradation
• Strong adhesion to pipe surfaces
• Water-activated urethane resin system fully cures to an inert fully encasing matrix
• Spiral applications provide simple pathways to targeted thickness
• Installed with no hot work, regardless of weather conditions, pipe orientation, or local geometries

• Set Time: Tack free in 30 to 60 minutes at ambient temperatures of 50aF to 80*F (10°C to 278C). Set time is slower below 50°F and faster above 80aF.
• Heat Resistance: From -20BF up to 250BF (-29eC to 1218C) - continuous. From 250°F to 5008F (121 aC to 260eC) - temporary exposures.
• Shelf Life: 6 months from date of purchase when stored at 40*F to 83aF (58C to 28aC) with proper stock rotation.
• Ply Thickness: 55-60 mil (cured)
• Color: Black
• Impact Strength: 345 in-lbs (39.0 J)
• Wear Resistance: 2.208 cycles per mil loss (ASTM D4060, Taber CS17 abrasion wheel)
• Gouge Resistance: 19 mil gouge depth (CSA Z245.20)
• Hardness: 60 Shore D. (ASTM D 2240 measured at full cure.)
• Lap Shear Strength: 1610 psi (ASTM 5868, measured on FBE)
• Description: These composite products are supplied in a sealed foil pouch with job specific installation instructions.
