EDI - Model CoarsAir -Bubble Diffuser Systems

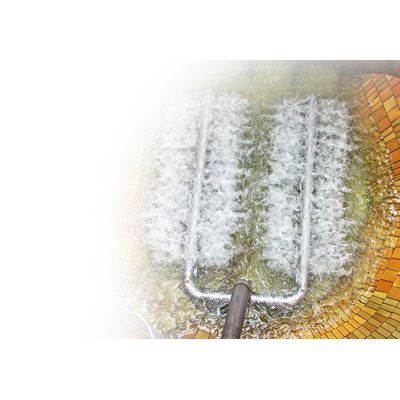

Coarse bubble diffuser systems offer moderate oxygen transfer efficiency and low maintenance with aggressive mixing, providing circulation and turbulence that ensures the entire water column is mixed adequately and sludge accumulation is limited. They are a very robust solution, with no moving parts in the water and orifices that are less prone to clogging than other forms of aeration.
Submerged Lateral
- Well suited for cold environments with air piping ballasted to basin floor
- Retrievable units without draining; low maintenance
- Well suited for aeration intensity lagoons
EDI Submerged Lateral Lagoon Aeration System is a fitting solution when maximum system durability and maintenance are required.
The system is ideally suited for the most rigorous applications where the basin cannot be taken off-line for system maintenance. The piping system is ballasted and rests on the basin floor. Individual diffuser assemblies are fully accessible from the water surface allowing maintenance to be completed without draining the basin or interrupting the process.
Virtually indestructible, it features high-density polyethylene pipe for maximum durability. The ballasting system is specifically designed to withstand the large thermal expansion associated with HDPE. Each component and total integrated system is engineered for maximum system integrity and proven field reliability. Heavy-wall, high-density polyethylene pipe and welded construction are standard for all connections.
The mechanical design of the EDI Submerged Lateral Lagoon Aeration System performance has been field demonstrated in the most rigorous conditions. When applied in cold climates, complete basin freeze-over is not uncommon.
The EDI Submerged Lateral Lagoon Aeration System is available with FlexAir Tube diffusers for energy efficiency and low maintenance. A coarse bubble diffuser option is also available when energy efficiency is not a significant concern.
Compatibility
CoarsAir™ coarse bubble diffusers are compatible with the following configurations:
- Fixed Grid
- ModuleAir™ Retrievable
..and serve applications including:
- 316 stainless steel construction
- High-temperature resistance—will not fail in high-temperature settings
- Clog resistant—designed for harsh environments
- Highest airflow capacity for efficiency
- Rugged heavy-duty construction for worry-free maintenance
- Excellent for mixing and for demanding applications
- Economical capital cost and ease of installation
- Mounts on any pipe material (PVC, ABS, CPVC, & SS)
- No-clog design
- Durable ABS body
- Greatest air capacity
- Integral check valve
- Economical capital cost and ease of installation
- 5” diameter for greater air distribution
- Mounts on any pipe material (PVC, ABS, CPVC, & SS)
- Premium quality EPDM membrane with check valve
- Rugged heavy-duty construction
- Pre-assembled in our facilities
- Non-clog design
- Engineered orifice design for maximized air distribution
- Turbulent mixing with contoured edge to fragment bubbles
- Internal diaphragm check valve to prevent entry of solids
- UV protection
- Low capital and maintenance cost
