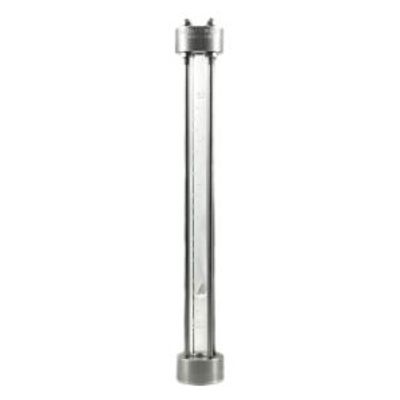

FOX - Model CCG -Calibration Pots for Dosing Pumps

Fox S.r.l. provides calibration pots designed for installation on the suction side of dosing pumps, enabling precise flow rate calibration. The calibration pots are engineered for measurement intervals of either 30 or 60 seconds and are built to withstand a maximum working pressure of 1 bar. Constructed with stainless steel AISI316L for closing caps, PTFE gaskets, and borosilicate glass tubes featuring serigraphy in milliliters, these units ensure high durability and accuracy. Additional features include vertical installation, various units of measurement, and compatibility with high-pressure execution up to 10 bar. Customized options are available such as epoxy painting, special volumes up to 50 liters, and a selection of exotic materials. Connections are flanged following ANSI B16.5 or UNI/DIN standards, with special connection options upon request, while external stainless steel safety protection further enhances their reliability.
