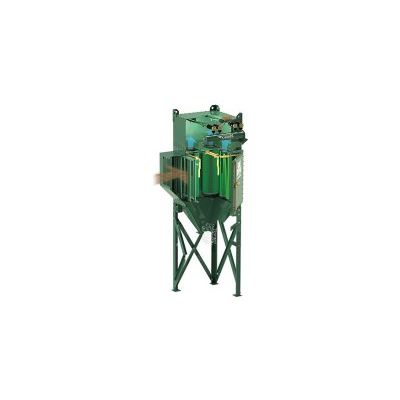

Camfill - Model Gold Series -Dust Collectors
Gold Series industrial dust collectors are the industry’s best-in-class dust collection systems. The family includes Gold Series and Gold Series X-Flo collectors, which have a 25 year track record of successful performance around the world. They handle all kinds of toxic and combustible dusts, smoke and fumes, including fine, fibrous and heavy dust loads. Gold Series industrial dust collectors effectively process dust while maintaining a low pressure drop. And most importantly, they exceed OSHA mandates for factory air quality. When equipped with Camfil’s explosion protection equipment such as explosion vent, iSMF (Integrated Safety Monitoring Filter), and Stinger explosion isolation valve, the Gold Series family offers the highest combustible dust explosion protection in accordance to both NFPA and ATEX standards.
- Engineered to protect workers from occupational exposure and combustible dust explosions. Delivers the maximum CFM of clean factory air.
- Safely contains combustible dusts. Gold Series collectors with explosion protection systems exceed NFPA and ATEX standards.
- Crossflow technology creates a uniform airflow so filters cartridges last longer
- Gold Cone filter cartridges are positioned vertically for superior release of high-loading dust with pulse-cleaning. They deliver maximum airflow and efficiency.
- Modular design dust collector provides optimum field flexibility and short manufacturing lead time - have it your way fast!
- Heavy duty carbon steel construction for long life - Dust collector module constructed of 7 gauge carbon steel. Door, hopper, inlet and panels are all 10 gauge steel.
- Baked on, durable Farr green powder coat paint - All carbon steel components are 5-stage acid washed prior to powder coating for maximum paint adhesion. Dust collector is painted inside and outside for unsurpassed weather and corrosion resistance.
- Vertical design of the Farr filter cartridges provides more efficient pulsing of dust, thus eliminating uneven dust loading associated with horizontally mounted cartridges.
- High entry cross flow inlet eliminates upward can velocities associated with traditional hopper inlets in industrial dust collectors. The channel baffles installed in the inlet protect the filters from incoming dust and separate the larger particles directly into the hopper, reducing the load on the filters.
- The Farr Gold Series dust collector utilizes Gold Cone® cartridge technology to deliver clean air and long life while utilizing the smallest floor space of any dust collector available today.
- Multiple filter media and pleat spacing options are available to best suit your specific application and dust.
Meeting airflow requirements with a 25% smaller housing allows the Farr Gold Series dust collector to deliver premium performance at a competitive price and take up less factory floor space. The service benefits are numerous offering faster, trouble-free change-out of cartridges.
Simple, quick-open heavy gauge door(s) provide access to a super-fast cartridge change-out system that does not require entry into the collector. The door is fully reversible for access from either side and has an exclusive lock-out feature for worker safety.
Easy Access Door
- No knobs to lose or drop
- No threads to bind
- Mechanically attached seal
- Heavy 10 gauge construction
Easy Change-out
Gold Cone cartridge with patented cambar action that positively seals the cartridges without using threads or knobs.
- Explosion Venting
- Rotary airlock
- Drum cover kit
- Clean air chamber access
- Custom colors
- NEMA7/9
- Solenoid enclosure
- Compressed air regulator
- Leg length
- Solenoid heater
- Outlet weather hood
- Extra cartridge access door
- Hopper access door
- Skid Packages
- Stinger explosion protection valve
- Sprinkler System
- Dust level indicator
- Dust bin with drawers
- Common trough hopper
- Low Pro/Low Boy Hoppers
- Stainless steel construction
- Various inlet designs
- Platform and ladder
- Self dumping hopper
- Screw conveyor
- Integrated Safety Monitoring Filter (iSMF)
- Pharmaceutical options
- Customization for specific applications
- Overbags for fibrous dusts like paper and fiberglass
Farr Gold Series offers modular design for maximum flexibility - have it your way fast! Each module accommodates airflows up to 5,000 cfm each. Component configurations are virtually unlimited.
Largest single point discharge hoppers available. Trough hoppers also available. Hoppers shown result in lowest possible head height.
