CECO Environmental

- Model HQS - Quencher Scrubber System

From

0

HEE-Duall designs and manufactures an innovative two stage scrubber solution for applications involving corrosive air from hot processes and corrosive air contaminants from processes such as thermal or catalytic oxidizers – HCl, HF, SO2, Cl2, HB. We custom design each of our Quencher Scrubbers in accordance with your specific application.

  • Low Total Cost of Ownership
  • High efficiency – Up to 99.9% removal efficiency of acid or toxic gases
  • Maximum reliability and value with corrosion and chemical resistance materials

  • Capacity up to 120,000 CFM
  • Corrosion resistant construction

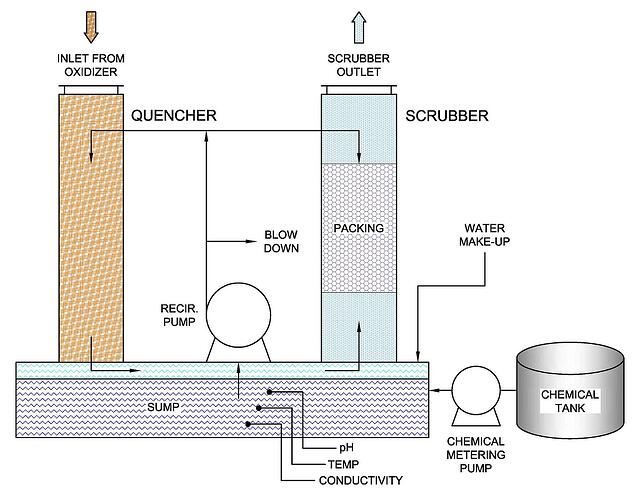

  • The Quencher stage of our system is constructed of a suitable metallic material.
  • The Scrubber stage is constructed of FRP material and is filled with a high efficiency packing material, mist eliminator and liquid distribution system.
  • Each Quencher scrubber system is equipped with a list of standard components and we can include a list of popular options for a complete and simple to operate system.
