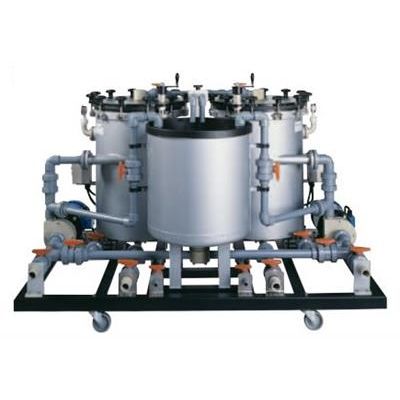

CECO Mefiag - Model LS Series - 3200/6500 -High Capacity Electroplating Filter Systems

SHARE

Our Mefiag brand steel rubber-lined High Capacity Electroplating Filter Systems feature horizontal disc technology and capacities of 3,200 to 6,500 gph for Single Chamber and up to 13,000 gph for Dual Chamber.

Most popular related searches
electroplating filter system
electroplating filter
electroplating system
lifting device
filter housing
copper and nickel
acid tank
  • Low Total Cost of Ownership
  • Horizontal disc technology for greater surface area and maximum efficiency
  • Mechanical lifting device for easy access to filter pack
  • Designed for the filtration of nickel, copper and zinc electrolytes
  • Operating temperature to 180°F
  • Depending on the type of process, single chamber systems are designed for plating tanks ranging from 600 to 1,500 gallons; dual chamber systems are designed for plating tanks up to 3,000 gallons
  • Can be supplied with high profile (for zinc) or low profile (for nickel and copper) horizontal discs
  • Special X-versions of these units are available for filtration of aggressive liquids such as acid copper, acid zinc or acid tin. The slurry tank and filter housing on X-versions are lined inside and out with ebonite, and the pump shaft is titanium
