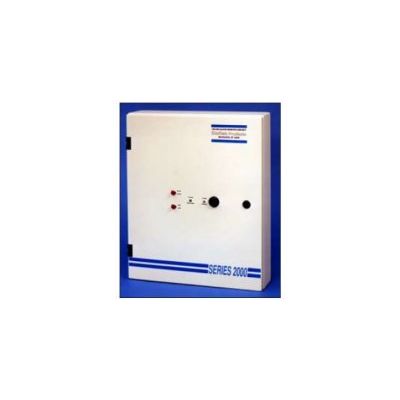

Ceiling Guard - Model CGM-40(T) -Monitored Systems
Monitors and powers up to 40 CSS-2000 or SS-2000 Water Alert detectors. Includes Test feature, audible and visual alarms, and isolated relay contacts for water leak sensed or sensing tray cable break. Wall mounted. 20`W x 24`H x 4.75`D. 35 Lbs.
Ceiling Guard Monitor. Unit shall be capable of monitoring, powering and testing up to 40 - CSS-2000 or SS-2000 Water Alert detectors. Unit shall provide LED indication of activating detector(s) and sound audible alarm. Relay contact output SPDT for water leak sensed and SPDT for zone break (supervision). Relays rated at 1amp. @ 28vdc. (200v max.). Unit shall contain internal battery back-up capable of 4 days monitoring without AC power. Unit shall be Wall mounted and require hard wiring to 110-120VAC. All installation / operation manuals and warranty to be included with unit. 5 year warranty minimum. Unit shall be provided by Dorlen Products Inc. Milwaukee, WI.
