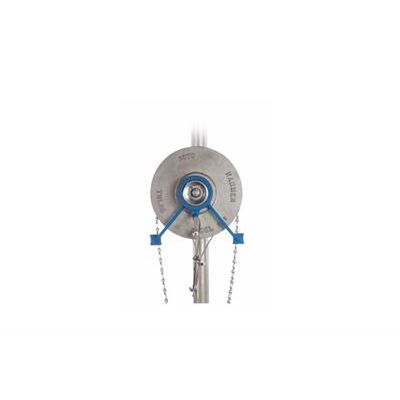

Roto Hammer - Model E Series -Chainwheel

SHARE

The Roto Hammer E Series Direct-Mount Chainwheel is designed to provide a truly custom fit. Instead of clamping on to the existing handwheel, the E Series mounts directly to the valve stem and replaces the handwheel. This eliminates the need for multiple clamps and hardware sets and provides a more streamlined, secure fitting of the chainwheel to the valve. The E Series can be bored to customer specifications or shipped solid for machining by the customer.

  • Aluminum E Series replaces handwheel sizes from 4 to 30-1/4 inches
  • Ductile iron E Series replaces handwheel sizes from 8-9/16 to 30-1/4 inches
  • All units come complete with sprocket wheel, chain guide, set collar and installation instructions
  • Available in ductile iron or light-weight aluminium
  • Mounts directly to the valve stem and replaces the existing handwheel
  • Centre hub is available blank or machined to fit customer requirements

When ordering, provide diameter of existing handwheel and length of chain required.
