FCA - Model CC -Channel Penstock
FromFCA Valves

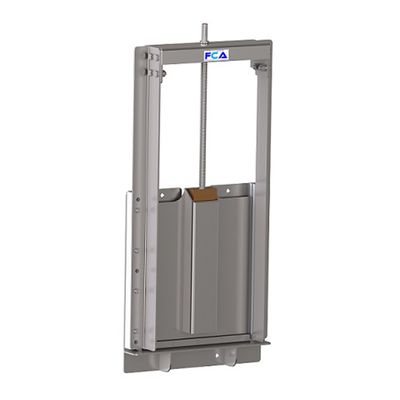

The CC model FCA channel penstock is provided with a square or rectangular sliding gate sealed on 3 sides and manufactured according to the dimensions required by the customer. Designed for an open channel, It is used in water treatment, power stations, hydraulic installations, purifying systems, etc...
Most popular related searches
channel penstock
power plant water
water treatment system
slide gate
water treatment
penstock
water distribution
power plant water treatment
water treatment installation
AWWA standard
The standard design consists of a frame and a sliding gate, and depending on the pressure, the channel penstock can also provided with polyurethane slides that guide the gate in its course. In the case of higher water heads roller guiding elements can also be considered. Notwithstanding the material of the gate, the tightness is achieved by the contact between a soft seal joint and a stainless steel surface.
- Design Standard : AWWA / DIN
- Sizes: 200x200 to 3000x3000
- Power
- Thermal Power Plants
- Water
- Water Distribution
- Water Treatment
