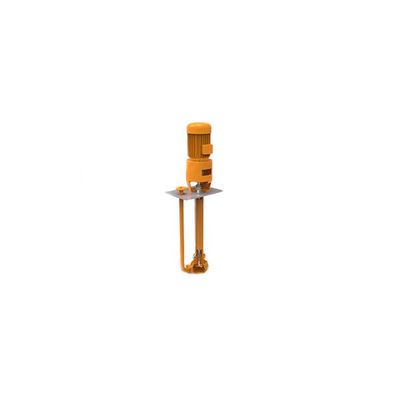

Masdaf - Model PSP -Chemical Sump Pumps

Design: Single stage, vertical shaft processing pumps with open or vortex type impellers. The open impellers are connected to the shaft by a wedge. The impellers are balanced according to ISO G 6.3. The back vanes of the impeller reduce the axial thrust and prevent the intake of solid particles. The cranks are designed so as to maximize hydraulic performance. The gear connection with the discharge pipe enables the moving of the discharge pipe without having to remove the pump from the well.
