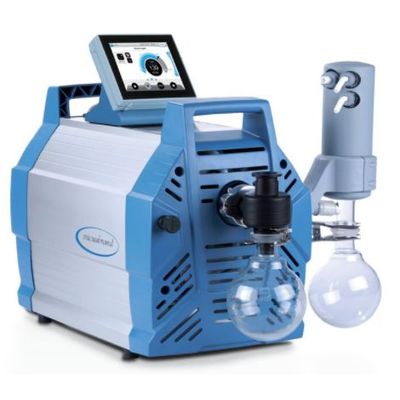

VARIO select - Model PC 3016 NT -Chemistry Pumping Unit
These powerful pumps feature exceptionally high pumping speed. The PC 3016 NT VARIO select pumping unit is a proven solution for evaporations with large amounts of low boiling point solvents. The integrated VACUU·SELECT controller provides an easy-to-use, application based interface that covers all common lab applications. The VACUU·SELECT controller has you covered. Use manual set-point-control for simple processes, run fully automated distillations, or create your own application with simple drag-and-drop editing.
For solvent evaporation, the VACUU·SELECT controller continuously detects the boiling point and automatically adjusts the vacuum process as necessary. With VARIO control, the pump runs only as fast as necessary. This extends the maintenance intervals and makes the pumping unit quiet. The inlet separator, made of glass with protective coating, prevents particles and liquid droplets from entering the pump. The exhaust vapor condenser provides nearly 100% recovery of solvents for economical recycling and environmental protection.
- VACUU·SELECT vacuum controller with graphical user interface and predefined applications simplifies work in the laboratory
- automatic boiling point detection and adjustment of the vacuum for short process times
- suitable for evaporation of large quantities of low-boiling solvents
- extraordinary diaphragm life for minimum operational and servicing costs
- excellent environmental compatibility through low energy consumption and efficient solvent recovery
- Ultimate vacuum: 70 mbar
- Ultimate vacuum with gas ballast: 100 mbar
- Max. pumping speed 50 Hz: 19.3 m3/h
Type mains plug
- CE
- EUS
- Max. pumping speed 50 Hz: 19.3 m3/h
- Max. pumping speed 60 Hz: 11.4 cfm
- Ultimate vacuum: 70 mbar / 53 torr
- Ultimate vacuum with gas ballast: 100 mbar / 75 torr
- Number of heads: 8
- Number of stages: 1
- Vacuum controller: VACUU·SELECT
- Lower ambient temperature (operation): 10 °C
- Upper ambient temperature (operation): 40 °C
- Lower ambient temperature (storage): -10 °C
- Upper ambient temperature (storage): 60 °C
- Max. back pressure (abs.): 1.1 bar
- Inlet connection: Small flange KF DN 25 / hose nozzle DN 15 mm
- Outlet connection: Hose nozzle DN 8-10 mm
- Coolant connection: 2 x hose nozzle DN 6-8 mm
- Rated motor power: 0.53 kW
- Protection class: IP 40
- Dimension L in mm: 616 mm
- Dimension W in mm: 387 mm
- Dimension H in mm: 450 mm
- Weight: 29.7 kg
- Noise level at 50 Hz, typ.: 47 dBA
- NRTL certification: No
- Items supplied: Pump completely mounted, ready for use, with manual.
- Rated mains voltage range 1: 200-230 V
- Mains frequency 1: 50-60 Hz
