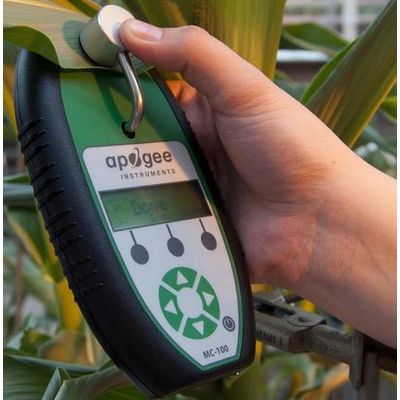

ApogeeModel E-804-MC-100 -Chlorophyll Concentration Meter

SHARE

The MC-100 Chlorophyll Concentration Meter directly measures and displays chlorophyll concentration from intact leaf samples without damaging the plant material. This data can be used to monitor environmental stress, evaluate the demand and efficacy of fertilizer treatments and optimize harvest schedules throughout the growing season.

Most popular related searches
  • Display Output Unit: µmol of chlorophyll per m-2 of leaf surface
  • Measurement Area: 63.6 mm-2 (9.0 mm standard diameter), 19.6 mm-2 (5.0 mm diameter with reducer)
  • Resolution: ± 10.5 µmol per m-2 using the generic equation
  • Linearity: ± 1 %
  • Repeatability: ± 1 %
  • Sample Acquisition Time: < 3 seconds
  • Storage Capacity: 8 MB for up to 160,000 data measurements, 94,000 data measurements with GPS data entries
  • User Interface: 50 mm by 15 mm graphic display screen, 8 push buttons for control and data manipulation
  • Data Output: Mini-B USB port provided for main data transfer, RS-232 port can be used with GPS for integrated measurement
  • External GPS Option: RS-232 port (GPS location data is saved with each measurement)
  • External Operating Temperature: 0 to 50 C
  • Temperature Drift: Temperature compensated source and detector circuitry over full range
  • Power Requirement: Standard 9V DC alkaline battery
  • Dimensions: 152 mm length, 82 mm width, 25 mm height
