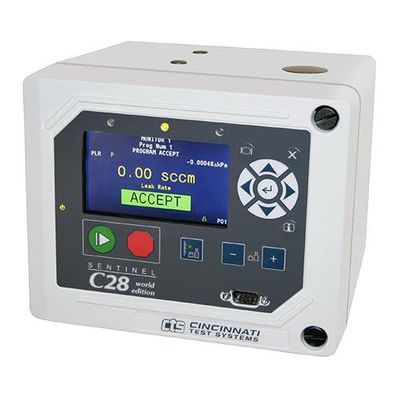

Cincinnati - Model Sentinel C28WE -Multi-Function Leak Test Instrument

SHARE

The Sentinel C28 is a versatile and highly advanced multi-function leak test instrument that provides high-resolution pressure decay, vacuum decay and occlusion leak testing with speed and repeatability in a compact wall-mount design.a

Most popular related searches
leak detection instrument
mass flow
leak detection
pressure testing system
vacuum leak testing
Single Test Configurable for Pressure or Vacuum Decay Test Requirements

With the C28WE you can perform the following types of tests:

  • Pressure/Vacuum decay-pressure change
  • Pressure/Vacuum decay-with certified mass flow leak standard
  • Pressure/Vacuum decay-pressure change/time
  • Occlusion test (vacuum or pressure test)
Sentinel C28WE Product Highlights
  • Test Pressure Range: -14.5 to 200 psig
  • Storage for 32 pre-programmed test sequences
  • Test Program can be selected through keypad, or digital binary input signals
  • Test results evaluation is fixed (Fail/Pass/Fail)
  • Test result output format is configurable
  • 6 inputs / 3 outputs with 1 programmable tooling motion
  • EtherNet/IP™ communication
  • Simple, multilingual operator interface
