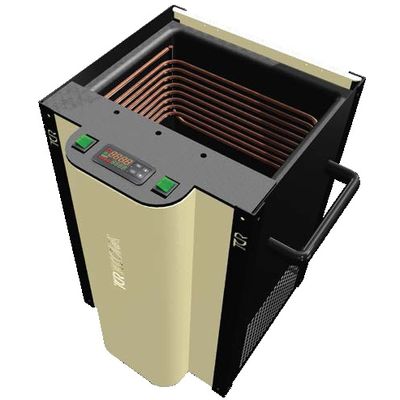

TCR Tecora - Model ISOFROST 3 -Closed Circuit Portable Chiller

The larger capacity tank contains the cooling coil able to keep the liquid al desired set-point.

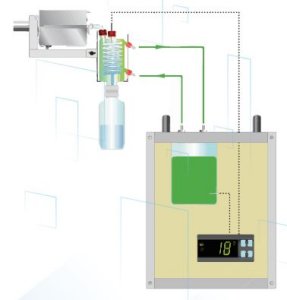

If connected to the MCS condenser it can measure the gas temperature at the coil outlet.

ISOFROST 3 is made in a compact and robust stainless and aluminum steel case. The small size and the practical handles make transportation, transport and lifting necessary to reach the sampling point, easier.

ISOFROST 3 allows you to change the temperature set point directly from the panel.

The evolution of the TCR Tecora® samplers integrates the automatic control of the cooling system through communication protocol even over long distances; this feature allows to have a save automatic and constant water tank and gas temperature monitoring.

The display of TCR Tecora® sampler recognizes ISOFROST 3 and saves in the report its functioning states, so any alarms can be addressed directly to the mobile device of the stack tester.

• Extremely compact size;
• Remote control by sampler;
• Extreme ease of use;
• High cooling performance;
• Condensate temperature through external sensor;
• Cooling liquid tank 18 lt;
• Built-in recirculation pump;
• Single control unit for controlling all parameters;
• Probe heating option. Low coolant alarm sensor;
• Connecting pipes for the coolant equipped with fast connections and thermal insulation;

The samplers of TCR Tecora® can automatically directly manage the cooling temperature of the chiller and heating one of the sampling probe, integrating all the data into the report. ISOFROST 3 is however capable to manage the heating of the box and the sampling probe in a stand-alone mode. This has been made possible through the research of the TCR Tecora® R&D Division and the work of its designers. Together they have created a new series of devices capable of interacting with each other through X-CONNECT technology which provides the property of being able to work passively and independently.

• Cooling device nominal power: 2610 BTU/hr > 765 W
• Liquid tank capacity: 18 liters
• Cooling temperature set point: 2°C (adjustable e.g. 0°C)
• Ricirculation pump nominal flow: 5.5 lt/min
• Max prevalence liquid recirculation pump: 6 meters
• Operating conditions: -20°C* + 45 °C - 95% UR
• Power supply: 230 Vac 50-60Hz (110Vac)
• Weight: 24 kg
• P/N Number: AC99-003-0012SP (0013SP 110Vac)
• Size: 365 x 320 x 555 mm LxLxA
• Communication protocol: RS-485

* for temperatures below 0°C is requested the use anti-freezing liquid
