ClydeUnion - Model Uniglide -Single and Two Stage Pump

SHARE

The Uniglide range consists of both configured and engineered to order axially split double suction pumps. This traditional range is available in larger capacities up to 20,000 m3/hr 88,000 US GPM

Most popular related searches
double suction pump
cooling water
suction pump
split case
vertical pump
water treatment
water desalination treatment
axially split pump
desalination treatment
water data

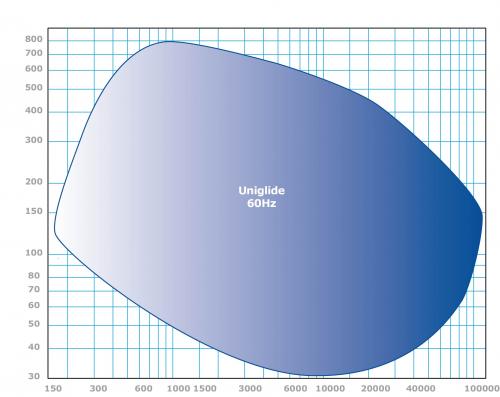

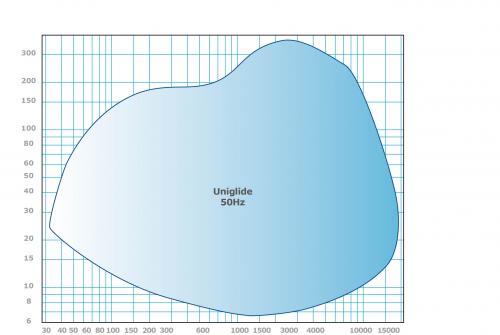

  • Capacity: up to 20,000 m3/hr / 88,000 gpm
  • Delivery head: up to 350 m / 1,100 feet
  • Temperature: up to 80 oC / 180 oF
  • Speeds: up to 3,600 rpm
  • Flange drilling: BS or ANSI
  • Desalination
  • Water treatment, supply and distribution
  • District heating and district cooling
  • Power auxiliaries
  • Mining
  • Metal manufacturing
  • Chemical and petrochemical industries
  • General industrial applications
  • Building services
  • Irrigation
  • Cooling Water

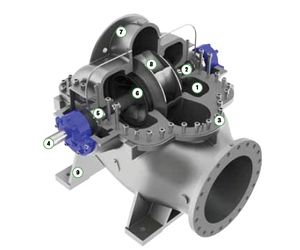

  1. Low energy costs
    1. Hydraulic design provides low NPSH, stable characteristics and high efficiency further enhanced with internal coating on cast iron casings and polished internals for steel alloy applications
  2. Sealing arrangement
    1. Single, double and cartridge options. Packed gland available on request
  3. Ease of maintenance
    1. Split casing design simplifies maintenance by allowing access to pump rotor without disturbing pipe work or driver
  4. Extended shaft life
    1. Shaft designed to minimise dynamic shaft deflection and provide ample safety factor in rotation speed, ensuring an extended shaft life
  5. Shaft sleeves
    1. Renewable shaft sleeves are available in a variety of materials offering shaft protection against stuffing box wear
  6. Wear options
    1. For economical renewal of operational clearances, replaceable metallic wear rings are fitted as standard, which reduces pressure leakage and improves the overall efficiency. Impeller and composite wear rings are available as a standard option
  7. Casing design
    1. Robust casing designed to reduce external forces and vibration incorporating integral bearing support. Double volute design utilised on appropriate frames
  8. Double entry impeller
    1. Hydraulically balanced impeller designed with optimised geometry provides high efficiency and low NPSH whilst minimising axial thrust for extended bearing and seal life
  9. Horizontal / vertical arrangement
    1. Rigid integrally cast feet allows mounting arrangement to be horizontal or vertical. Vertical pumps are fitted with a product lubricated bottom bearing as standard
