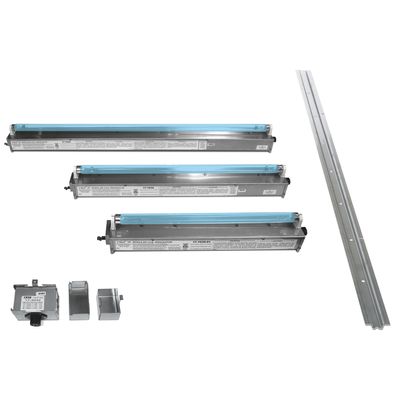

UVDI - Model V-MAX -Coil Cleaning - Designed for In-Duct Use
Proven UV-C Effectiveness in a Flexible Form Factor: Patented “plug-n-play” design for ease of installation in both existing and new equipment; Reduces operating costs: both lowers energy costs and minimizes costly maintenance; Flexible for use inside access systems; Replaces potentially dangerous alternative cleaning methods; Maintains HVAC system capacity
- Rated for temperature 50°F — 135°F (10°C — 57°C)
- RH: up to 95% non condensing
Regulatory Approvals
- UL 1598/CSA 22.2 250
- UL 1995/CSA 22.2 236
- UL 153/CSA 22.2 12 for category ABQK (Air Duct Mounted Accessories)
Healthy Air Supply
UV energy destroys bacteria and mold that grow on the moist coil and drain pan surfaces eliminating “blow-off” of these into the air supply. This ensures that clean airflow is cooled by the coil without cross contamination.
Better Comfort
Coil disinfection prevents biofilm accumulation on fins resulting in effective heat transfer with better temperature and humidity control.
Energy Savings
Maintaining a coil free of microbial growth will maximize coil heat transfer efficiency and reduce energy consumption up to 15% in some systems.
Reduced Maintenance Cost and Less Downtime
UV energy ensures the cooling coil remains clean at all times, eliminating costly coil cleaning maintenance and reducing system downtime.
