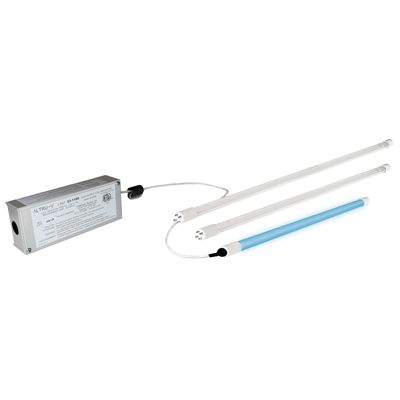

UVDI - Model V-RAY -Coil Cleaning - Designed for Small Air Handling Units

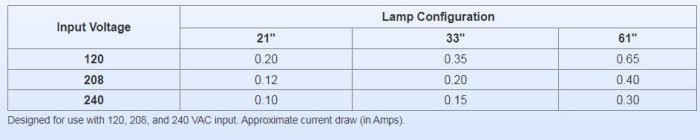

Light Commercial HVAC Coil Maintenance for Small AHUs: Delivers an optimum level of UV energy to neutralize molds, bacteria and viruses in tight air handling applications where space is limited; Versatile and easy to install - can be mounted in any orientation for proper irradiation; Does not require complex racking support systems; Ballast is designed to easily mount in vertical support strut, reducing installation cost; Negligible pressure drop; Low power consumption with universal voltage; Available 21", 33" and 61" lamps
- Rated for temperature 30°F — 150°F (-1°C — 65°C)
- RH: up to 95% non condensing
Regulatory Approvals:
ETL listed to UL/Canadian standards:
- UL 1598/CSA 22.2 250
- UL 1995/CSA 22.2 236
- UL 153/CSA 22.2 12 for category ABQK (Air Duct Mounted Accessories)
Healthy Air Supply
UV energy destroys bacteria and mold that grow on the moist coil and drain pan surfaces eliminating “blow-off” of these into the air supply. This ensures that clean airflow is cooled by the coil without cross contamination.
Better Comfort
Coil disinfection prevents biofilm accumulation on fins resulting in effective heat transfer with better temperature and humidity control.
Energy Savings
Maintaining a coil free of microbial growth will maximize coil heat transfer efficiency and reduce energy consumption up to 15% in some systems.
Reduced Maintenance Cost and Less Downtime
UV energy ensures the cooling coil remains clean at all times, eliminating costly coil cleaning maintenance and reducing system downtime.
