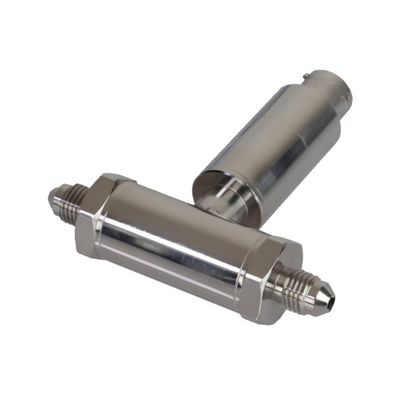

EFE - Model PDM220 -Compact Differential Pressure Transducer
FromEFE
The PDM220 series pressure sensors provide accurate differential pressure measurement of gas and liquids in ranges from 250mbar up to 600bar. he PDM220 series pressure sensors provide accurate differential pressure measurement of gas and liquids in ranges from 250mbar up to 600bar. Standard unamplified and amplified analog outputs are available : mV/V, 0.5-4.5Vdc, 0-5Vdc and 2-wire 4 to 20mA current loop. They are suitable for uni or bi-directional measurement. Their construction being all stainless steel, they are compatible with most media, including corrosive fluids used in automotive and aerospace industries.
Most popular related searches
differential pressure monitoring
pressure sensor
differential pressure transducer
industrial sensor
pressure monitoring
corrosive fluid
pressure transducer
gas monitoring
industrial pressure sensor
- Product category :
- Industrial Sensors
- Specialty Sensors
- High Performance Sensors
- Power supply :10Vdc stabilized and filtered
- Offset :±3%FS
- Sensitivity :1 to 2mV/V
- Pressure ranges (FS) : 250mbar500mbar1bar3bar5bar10bar20bar40bar100bar250bar400bar600bar
- Operational mode :
- Differential Uni-directional
- Differentiel Bi-directional
- Mechanical connection :
- 1/4 Gaz A male
- 1/4 NPT male
- M14x1.5-4h male with 60° internal cone
- 7/16-20 UNJF-3A male - MS33656-4
- M10x1-4h male with 80° internal cone
- Electrical connection :
- DIN 43650 Receptacle - 4 pins
- Hermetic MIL-C-26482 - 6 pins Receptacle
- Compensated temperature range :
- 0 to +60°C
- -25 to +85°C
- -25 to +125°C
- Combined thermal zero & sensitivity shifts :±0.02% FS/°C
- Size :Industrial
- Diameter :22mm
- Material(s) of wetted parts :
- Stainless steel 15-5PH
- Stainless Steel 17-4PH
- Stainless Steel 316L
- Non linearity and hysteresis combined :
- ±0.25% FS
- ±0.15% FS
- Non repeatability :±0.05% FS
