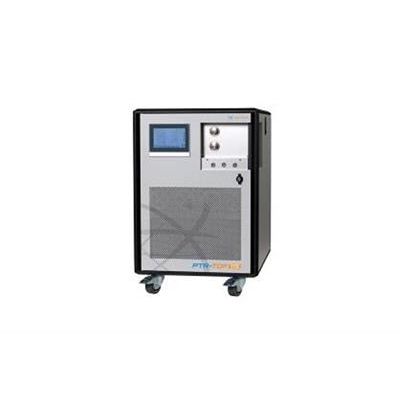

IONICON - Model PTR-TOF 1000 -Compact Trace Gas Analyzer

The PTR-TOF 1000 is an IONICON PTR-TOFMS instrument with dimensions, weight and price usually restricted to high-end quadrupole PTR-MS, but having all the advantages only powerful time of flight based solutions offer:

• the entire mass range in split-seconds - no selection of masses - no waiting
• faster and more sensitive for complex mixtures and
• high mass resolution for better separation and identification.

The instrument demonstrated its reliability and robustness but also its remarkable technical abilities and speed during various international campaigns and is ideally suited for analysis of VOCs at a very high time resolution. It comes with a fully integrated IONICON data acquisition and data treatment software suite.

Enter into the world of PTR-TOFMS with IONICON’s new PTR-TOF 1000: our smallest, lightest and most affordable time PTR-TOF trace gas analyzer. Don`t settle for anything less advanced!

• Mass resolution : > 2000 m/Δm (FWHM) for m/z > 79
• Response time : 100 ms
• Sensitivity :
• > 80 cps/ppbv for m/z 79
• > 200 cps/ppbv for m/z 181
• Detection limits averaged over 1 minute :
• < 20 pptv for m/z 79
• < 10 pptv for m/z 181
• Linearity range : 10 pptv - 1 ppmv
• Pulse frequency : up to 150 kHz
• Adjustable flow : 50 - 800sccm
• Inlet system heating range : 40 - 180°C (2nd inlet system and other inlet options on request)
• Reaction chamber heating range : 40 - 120°C
• Weight : < 125 kg
• Power supply : 100-230 V, max 1500 W
• Interfaces : Touchscreen display 8x DI/O, 2x AI, 2x AO
• Selected optional features & Accessories :
• SRI/SRI+ options - SRI-MS technology
• Multiplexing units
