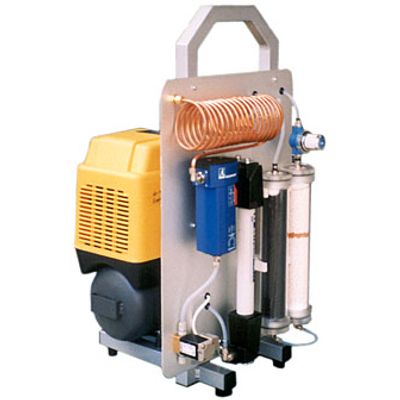

MCZ - Model NGA 100-6S -Compact Zero Gas System
Compact zero gas system with permeation dryer and 6 l pressurizing gas tank for process and zero gas used in the gas analysis industry. Compressor requires no oil. Immediate functional, maintenance-free operation.
Most popular related searches
zero gas system
zero gas
compressed air treatment
filter cartridge
compaction system
gas analysis
compressed air
cartridge filter
air treatment
dry separator
- Service, small laboratories, mobile measurements, as replacement in case of maintenance or malfunction of the central zero gas system
- Interference components are removed with 2 filter cartridges. Filling of filter cartridges based on use.
- Case dimensions: 380 x 410 x 630 mm(L x B x H)
- Weight: ca. 24 Kg
- Max. pressure: 8 bar
- Gas flow: 34 l/min at 3 bar
- Pressure tank: 6 liter
- Drying: Water separator / permeation dryer, dew point typ. -5°C
- Connected load: 220 V 50 Hz / 4A
- Noise level: 61 dB(A) / 1m
- Note: pressure controller and manometer to set output pressure
