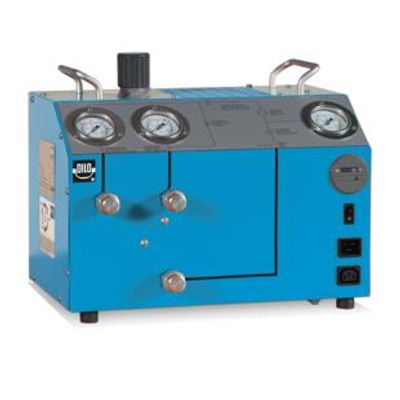

DILO - Model Mini Series-HE-ZB095R12V1 -Compressor Unit for Helium Recovery
Operating voltage: 220 - 240 V / 50/60 Hz alternating current. For gaseous helium storage up to 50 bar. The MINI-SERIES stands for efficient gas handling of small gas compartments with gas recovery in combination with the Vacuum compressor HE-ZB093R30 up to 5 mbar.
- Gas type: HE
- Filling of gas: 5 bar
- Maximum storage pressure: 50 bar
- Recommended gas quantity: < 40 kg
- Operation: manual
- DILO couplings: DN8
The handy mini components for recovering gas compartments up to 100 litres in volume, consisting of the compressor and a vacuum compressor, are connected to form a single unit by means of wire braied hoses.
Gas compartments can be filled directly from pressure vessels by means of the integrated pressure reducer.
System components
Units of the Mini-Series - Helium recovery on small gas compartments
The Mini Series is composed of a number of units and is perfectly suited for gas handling of small gas compartments and gas reclaiming to 5 mbar. We recommend using this series for small gas quantities. Oilfree compressors allow gas handling without contamination by oil residues.
- oil-free DILO compressor (1.6 m³/h [at 50 Hz], 50 bar; 1.9 m³/h [at 60 Hz], 50 bar)
- particle filter 1 μm
- gauge NG63
- filling pressure reducer 0 - 5 bar pa
- DILO couplings DN8 (M24x1.5 und M30x1.5)
- electric control
- 3 m long electrical connecting cable
- paint: blue-anthracite
- Dimensions (W x H x D): 310 x 370 x 455 mm
- Weight: 28 kg
- Operating temperature: 0 to +45 °C
- Ambient temperature: 0 to +45 °C
- Storage temperature: -20 to +60 °C
