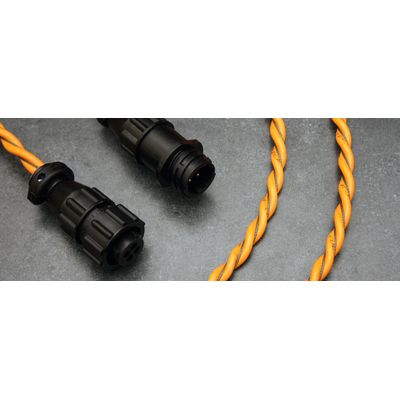

RLE - Conductive Fluid Sensing Cable

RLE’s conductive fluid sensing cable is:

• Durable – manufactured with an abrasion-resistant polymer core, increasing strength and durability. Definitely stands up to foot traffic!
• Flexible – easily bends around corners and wraps around pipes, resisting bends and kinks.
• Resists False Alarms – engineered to resist contamination and constructed from non-conductive polymers, eliminating false alarms!
• Quick to Install – each end of the cable contains mating connectors – this makes it easy to install new systems and to add lengths of cable to existing systems.
• Easy to Clean – when it’s visibly dirty, clean it quickly with Dawn dish soap or rubbing alcohol. No special cleaners or cleaning systems required.
• Fast Drying – gently wipe the cable dry, and it’s ready to detect the next leak.

Plus – all of our sensing cables are manufactured and assembled in the USA.

Orange fluid leak detection sensing cables are available in a variety of lengths:

• 3ft (0.91m) – SC-3
• 10ft (3.05m) – SC-10
• 17ft (5.18m) – SC-17
• 25ft (7.62m) – SC-25
• 50ft (15.24m) – SC-50
• 100ft (30.48m) – SC-100
• Custom Lengths (available upon request) – SC-CL

With over 20 million feet of leak detection sensing cable installed in systems around the globe, you can’t beat the durability or reliability of our leak detection sensing cables.

How Much Cable Do I Need?

Ready to purchase a SeaHawk system? Download and use our SeaHawk Sensing Cable Length Calculator to make sure you order the right amount of cable.

• Durable
• Easy to clean
• Fast drying
• Helps eliminate false alarms
• Able to resist damage from most contaminants
• Highly flexible – resists bends and kinks
• Quick, simple installation and easy system expansion
• Lies flat after installation
• Non-conductive polymer construction
• Thermally bonded polymer-coated carrier
• Plenum rated, UL listed, and RoHS compliant
• Available in standard and custom lengths with pre-installed end connectors

Plenum Rating: CL2P (UL)

Sheer Strength: >180 lbs. (>81kg)

Cut Through Resistance: >40 lbs. (>18kg) with .005in (0.127mm) blade

Abrasion Resistance: 60 cycles per UL 719

Connector: 4 pin, 0.96in (24.38mm) diameter

Resistance per Foot: 2.8 ohms

Operating Environment

• Temperature: 32° to 167°F (0° to 75°C)
• Humidity: 5% to 95% RH, non-condensing
• Altitude: 15,000ft (4,572m) max.

Storage Environment: -22° to 185°F (-30° to 85°C)

Dimensions: Diameter of cable not to exceed 0.25in (6.35mm)

• SC-3 : 3ft (0.91m)
• SC-10 : 10ft (3.05m)
• SC-17 : 17ft (5.18m)
• SC-25 : 25ft (7.62m)
• SC-50 : 50ft (15.24m)
• SC-100 : 100ft (30.48m)
• SC-CL-xx : Custom Lengths (available upon request)

Weight: .02 lbs./ft (29.74g/m)

Certifications: CE; UL CL2P; RoHS Compliant; Plenum Rated; Patent No. 6,144,209
