Baioni Crushing Plants Spa

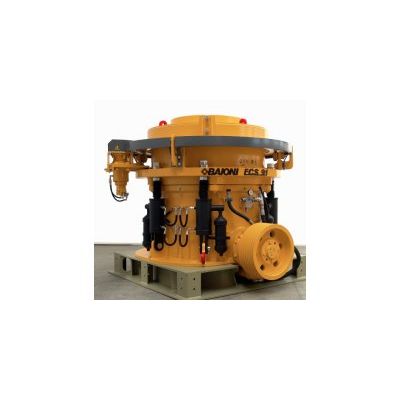

- Model FCS - Cone Crusher



The high reduction ratio, the working principle, the compact and extremely sturdy design make the FCS cone crusher the ideal solution for the secondary crushing of extremely hard and abrasive materials. It is equipped with a hydraulic power pack, which includes an electric panel as well as automatic check and safety devices. The power pack also controls the machine start-up, the oil lubricating system, the hydraulic adjustment, and locking and unclogging system.

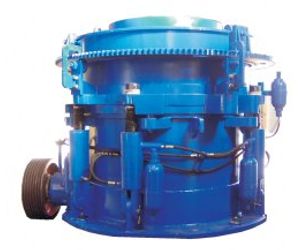

Hydraulic Gyratory Cone Crushers FCS
This range of gyratory cone crusher is equipped with a unique patented system by which the bushings rotate around a fixed shaft. The main shaft is reinforced and can bear particularly heavy crushing operations. The crushing chamber has been designed to work on the gravity principle by which the particles fall; speed can be adjusted to increase the crushing ratio as well as the output and the percentage of cubic product present in the final material. BAIONI hydraulic gyratory cone crushers series is considered to be the latest generation crushers for modern mining industry, as a replacement for conventional spring gyratory crushers.

The minimum setting is obtained when there is minimum space between upper and lower cones. This setting varies according to the  characteristics of crushability of the material.

Minimum setting A implies feed opening setting B.

Maximum feed size varies from 80 to 100% of B according to the type of material and size of the machine.
