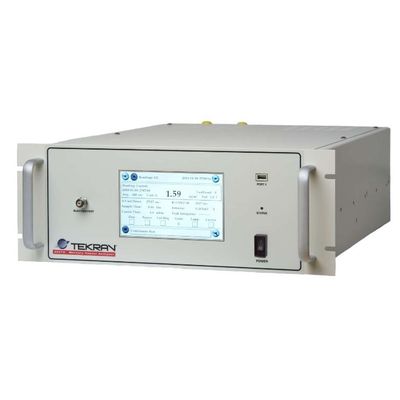

Tekran - Model 2537Xi -Continuous Mercury Vapor Analyzer
Electronics Platform: Network enabled. Touch screen interface. Local data storage and front panel USB port. Remote access (troubleshooting, control and configuration). Improved data and instrument parameter logging. Additional functionality via optional s/w plugins (std. additions, remote valve control, and much more).
Most popular related searches
flue gas CEMS
mass flow control
mercury vapor analyzer
chamber valve
mass flow metering
mass flow meter
mass flow
atomic fluorescence
mercury vapor
flow control
Detector
- New lamp stabilizer and detector electronics
- Easy cuvette removal via convenient fitting interface
- Improved stability
- Digital PMT control and display
Permeation Source
- Lower dead volume permeation chamber
- Valve improvements to reduce pressure effects
- Digital perm source set point and display
Cartridge / Valve Assembly
- New valve assembly with low dead volume
- Constant power heater control insures consistent temp over heater life
- Faster cool down time with independent high-velocity channelled fans
Physical Layout
- Reduced height from 5U (8.75”) to 4U (7”)
- Improved component accessibility for routine maintenance

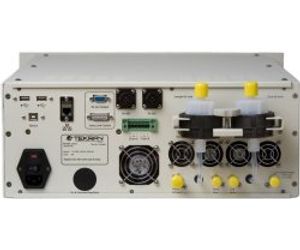

- USB Host Ports (2)
- USB Device Port (1)
- Network Port (1)
- RS-485 Ports (2)
- Analog Chart Outputs (2)
- RS-232 Serial Output (1)
- Status and Control Input (1)
- Sample and Gas Inputs (3)
- Analyte: TGM (Total Gaseous Mercury) with speciation available from the 3321 Sample Conditioner in a 3300Xi system.
- Principle: Gold pre-concentration with atomic fluorescence detection.
- Sensitivity: < 0.1 ng/m3 (5 min samples)
- Sampling Cycle: 2.0 – 60 min (2 – 15 min recommended)
- Sampling: Continuous (no data stream gaps)
- Outputs: See Above, plus Modbus from CEM-Plus software
- Sample Flow: 0.2 – 0.5 L/m
- Flow Totalization: Precision mass flowmeter (MFM)
- Pump: Internal, variable speed (MFM feedback loop control)
- Carrier Gas: Argon
- Consumption: < 10.5 L/day (full size tank lasts 5 to 6 weeks)
- Carrier Setpoint: Precision mass flow controller. Carrier flow is set to one of 3 settings during each desorption cycle. MFC provides superior stability and accuracy.
- Calibration: Automatic using internal permeation source. Manual injection port also provided
- Physical: Self-contained. 19” rack mountable (4U height)
