Dajiang - Model HS -Wastewater Static Sieve Screen

SHARE

Static sieve screen wastewater offers proven and reliable performance in liquid solid separation for municipal and industrial application,particularly for screening fibrous and non-greasy solids. There are no moving parts,motors,or complicated connections. The screen is simple to operate. In wastewater treatment plants,the Static hydraulic screen unit is renowned as a fine screen for pretreatment or used as grit dewatering equipment .Industries,such as meat processing plants,food producing plants, textile mills and recyclers ,rely on it for product recovery and wastewater treatment.Pulp and paper mills use it for fiber recovery and rejects handing.

Most popular related searches
static screening
static screen
solid-liquid separator
solid-liquid separation
wastewater treatment plant
dissolved air flotation
sieve screen
dewatering system
wastewater treatment
wastewater screen
  • Product Item：HS
  • Capacity:5-120m3/hr
  • Material : SUS304,SUS316
  • No motor
  • MOQ:1Set, OEM accepted

In wastewater treatment plants,the Static hydraulic screen unit is renowned as a fine screen for pretreatment or used as grit dewatering equipment .Industries,such as meat processing plants,food producing plants, textile mills and recyclers ,rely on it for product recovery and wastewater treatment.Pulp and paper mills use it for fiber recovery and rejects handing.

DAGYEE provides reliable performance in liquid-solid separations for municipal and industrial applications, especially when sieving fibrous and non-oily solids. There are no moving parts, motors or complicated connections. Liquid solid separation screens are economical and simple to operate.

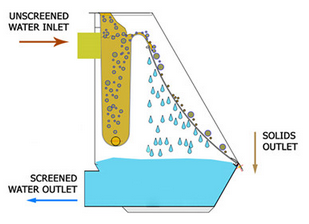

Influent pumped into the inflow chamber through the inlet of the pipe. As the water level rises, it will flow under the  wage weir and the pivoting baffle. Liquids and solids flow through the screen, and Liquids falls through the screen, while gravity and more screening push the captured solids toward the discharge point. The wastewater passes through the filter enters distribution chamber and flows through the outlet tube. The drip-proof assembly at the bottom of the filter directs excess water to the waste chamber. When the solids reach the bottom of the screen, they slide into the container, conveyor or other suitable receiving equipment. Dagyee offers a variety of rear screen and dewatering equipment. To assemble the most cost-effective screening system. Welcome to consult.
WHY CHOSE STATIC SCREEN

Advantages from simple design and robust construction
  • No moving parts, no motor
  • Very low installation cost, no maintenance required
  • Only need regular cleaning
  • Quiet operation
  • V shape of the bar provides a self-cleaning effect on the screen
Static hydraulic screen
  • A Better Environment for Beaver Pond
  • Whitewater Reuse
  • Broke Thickening
  • Helps Nut Grower Recycle Wastewater
  • Screening fire sprinkler water
  • Storm water screening
  • Better Dairy Pen Waste Management
  • Textiles and laundries
  • Fruit and vegetable canning
  • Wine producers and distilleries
  • Meat and processed meals industry
  • Slaughterhouse
  • Fish processing
  • Breweries and dairies

 STATIC SCREEN USED WITH DAF UNITS

Used for Dissolved air flotation as a core product, static screen as a pretreatment before Dissolved air flotation . These screens facilitate a consistent flow and reduce the amount of suspended solids going to the DAF unit.

In wastewater treatment plants, our static screening equipment is famous for fine screens used for pretreatment and as gravel dewatering equipment. Industrial users such as meat processors, food processors, tanneries, textile mills and recyclers all rely on it for product recycling and wastewater treatment. Pulp and paper mills use it for fiber recycling and refuse to dispose of it.
