Bea Technologies - Model XAM-100100-Evo -Differential Pressure Gauge

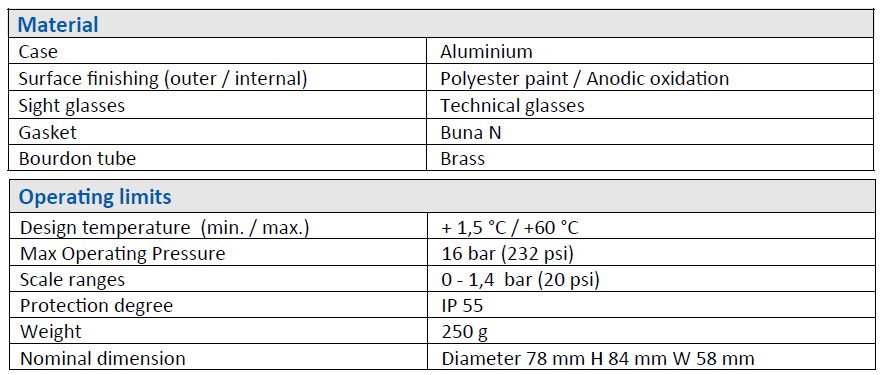

XAM-100-Evo differential gauge measures the differential pressure between the inlet and the outlet for the AIR VIP and AIR VIP Evo series. With the scale centrally set at “ 0 “ the gauge can be mounted with a rotation of 180°. The gauge can be mounted without taking into account the flow direction. Suitable for outdoor installation, see the below limits.
Most popular related searches
The gauge clearly states when the filter element must be replaced.
The measuring system is a Bourdon type, when the arrow is in the green area (from 0 to 0,4 bar) means that the filter element consumes the minimum energy required to work, while when the arrow is in the red area, (from 0,6 to 1,2 bar) the filter element is consuming too much energy and must be replaced.
