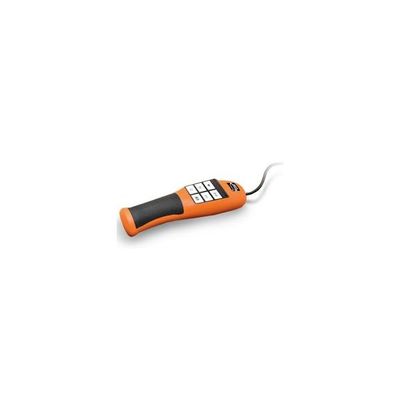

DILO - Model 3-033-R002 -SF6-LeakPointer - SF6 Leak Detectors
The cordless battery operated device measures in seven levels of sensitivity within a short response time. Even after the detection of large leaks the device returns to zero position quickly. The SF6 LeakPointer is easy to operate with one hand. Leakages can be easily detected via the clearly visible LED display or the audible signal (can be switched off). Continuous operation of the device is possible.
Most popular related searches
SF6 gas monitoring system
SF6 gas monitoring
gas monitoring system
SF6
SF6 leak detection system
SF6 gas
gas monitoring
SF6 measurement system
SF6 leak
SF6 detector
- Quick response time
- Low "Recovery" time
- Automatic switching over to levels of sensitivity
- Detection of leaks of up to 5 g / year
- Single-handed operation
- Battery-operated
- Temperature-compensated
- Dimensions with case: W 300 mm, H 75 mm, D 230 mm
- Weight with case and accessories: 1160 g
- Power supply: 3 x 1.5 V alkaline batteries C LR14
- Sensitivity: 5 g SF6 / year
- Operating temperature: -20 °C to +50 °C
- Ambient moisture: up to 90 % relative moisture, non condensing during operation
- Measuring principle: high voltage ionisation
- Response time T90: approx. 1s
- Recovery time: approx. 1s
- Indication: 8 segment bar display + 7 LED measuring range indication + acoustic signal
- Sensor length: 385 mm
Standard equipment:
- Carrier case
- Three 1.5 V alkaline batteries
- Spare sensor
- 1 operating manual (multilingual) on CD-ROM
