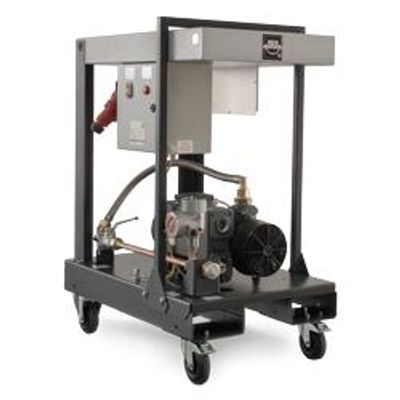

DILO - Model B046R03 and B046R13 -Mobile Vacuum Pump Unit
The mobile vacuum pump unit is convincing by its easy handling. The unit serves for evacuation of air or nitrogen from switchgear. The 40 m³/h vacuum pump (standard version) enables a fi nal vacuum of < 1 mbar. Thus it is guaranteed that no air/gas mixture can be generated and the excellent insulation properties of SF6 are maintained. The 2-stage vacuum pump (available as option) even reaches a fi nal vacuum of 0.0067 mbar.
B046R03
Mobile vacuum pump unit
B046R13
Mobile vacuum pump unit with solenoid valve instead of ball valve
The B046R13 version is equipped with a solenoid valve instead of a ball valve. Therefore, operating errors are avoided since the valve is closed automatically in case of function end or interruption of circuit.
Both versions are available in different performance classes (see optional equipment), so that all requirements can be easily met.
- Steerable and fixing rollers allow comfortable transportation
- Use of self-closing couplings DN20
- Different performances are available (see options)
- Adapters for other nominal widths are available
- Protection of the vacuum pump against overpressure by a solenoid valve (B046R13)
- Digital vacuum indication in mbar
- With practical storage tray for accessories
- Steerable and fixing rollers allow comfortable transportation
- Use of self-closing DILO couplings DN20
- Different performances are available (see options)
- Adapters for other nominal widths are available
- Protection of the vacuum pump against overpressure by a solenoid valve (B046R13)
- Digital vacuum indication in mbar
- With practical storage tray for accessories
Technical data for 40 m³/h vacuum pump, fi nal vacuum < 1 mbar:
- Dimensions: Length 890 mm, Width 610 mm, Height 1,050 mm
- Weight: 115 kg
- Operating voltage: 208 - 240 V / 380 - 460 V / 50 - 60 Hz 3-phase current
Standard equipment:
- Vacuum pump for air 40 m3
- /h [at 50 Hz]; 48 m³/h [at 60 Hz], fi nal vacuum < 1 mbar
- Digital vacuum indication in mbar
- Ball valve DN20
- 5 m long hose DN20
- DILO coupling tongue part DN20
- Electric control
- Fixing and steerable rollers
- Storage tray for accessories
- Diš erent wrenches
- Paint: orange (RAL DESIGN 2004)
- Operating manual
