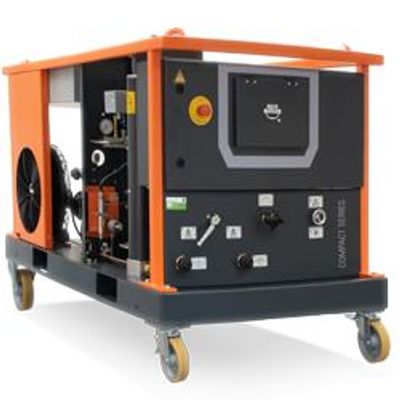

DILO - Model B057R - Compact Series -Service Carts for Medium Sized Gas Compartments
Starter series for medium-sized gas compartments The service carts of the Compact series for gaseous or liquid storage offer the best entry into professional gas handling. Equipped with the well-proven DILO components these service carts allow the recovery, filling and purification of SF6 gas as well as the evacuation of air and venting of medium-sized gas compartments. Depending on the device type, the Compact series allows gas recovery down to < 5 mbar. Thus, this series considerably exceeds the demanded values of IEC guideline 62271-4. This series offers semi-automatic operation via a 7" touch screen with protective cover shielding from sunlight and dust. It is the compact solution for emission-free gas handling thanks to self-closing DILO couplings DN20.Most popular related searches
SF6 gas
digital weighing scale
SF6 gas recovery
gas recovery
dry filter
liquid storage
emission gas
digital weighing
SF6 recovery
particle filter
- Devices for storage in gaseous or liquid form
- SF6 gas recovery down to < 5 mbar or 1 mbar
- Semi-automatic operation via 7“ touch screen
- Emission-free gas handling thanks to self-closing DILO couplings
- Reduction to transport pressure as integrated special function
- All versions are available with tanks that can be assembled under the device; with CE marking or optionally with SQL or ASME approval
- Storage box for accessories
Technical data:
- Dimensions: L 1,850 mm, W 950 mm, H 1,220 mm
- Weight: 580 kg
Standard equipment:
- TM 5.0 B oilfree DILO compressor; delivery rate: 6.5 m³/h at medium suction pressure with SF6
- Vacuum compressor for recovery of SF6 (4.8 m3/h, final vacuum < 5 mbar)
- Vacuum pump for evacuation of air (40 m3/h, final vacuum < 1 mbar)
- Evaporator
- Dry filter
- Particle filter
- Indication units in bar / mbar, kPa or psi / torr to be selected on the operating panel
- Fork lift provisions
- Digital weighing scales for SF6 bottles, 0 - 120 kg with tare function, accuracy ± 20 g
- 5 m long storage connecting hose DN8 with coupling tongue part DN20
- Different wrenches
- Paint: orange (RAL 2004)
- Operating manuals
