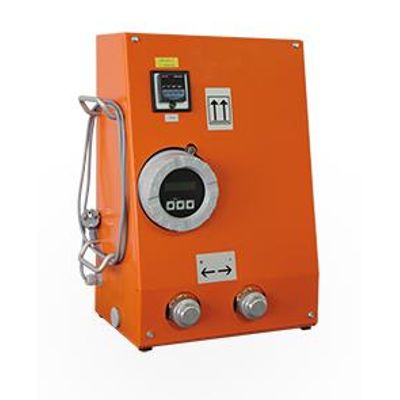

DILO - Model B152R41V1 / B152R41S15 -Mass Flow Measuring System
B152R41 / B152R41S15: Mass flow measuring system with an additional resettable, adding and subtracting counter. B152R51: Mass flow measuring system ( battery-operated with charge indicator). Battery operation enables an application independent of the power supply. With this device, gas monitoring is just that simple. Gas quantities which are filled in and recovered are registered and can be transferred to a computer. The system displays the current mass flow as well as the total mass. It is also equipped with an additional meter which can be reset, add and subtract the gas quantity. Thus, the SF6 gas monitoring is very easy.
Most popular related searches
mass flow monitoring system
flow monitoring system
mass flow monitoring
mass flow
flow monitoring
SF6 gas monitoring
SF6 gas monitoring system
SF6 gas
gas monitoring
gas monitoring system
- System can be wall or table mounted
- Coupling groove part DN20
- Measuring accuracy for gases: 0.50 % ± 0.1 kg/h
- PC-Hart modem with PC interface cable (available as option)
- Indication in kg, optionally in lbs
Technical Data:
- Dimensions: L 400 mm, D 280 mm, H 540 mm
- Weight: 20 kg
- System can be wall or table mounted
- Indication in kg, optionally in lbs
- Operating temperature: 0 to 50 °C
- Operating voltage of B152R41: 220 - 240 V / 50 - 60 Hz alternating current
- Operating voltage of B152R41S15: 110 - 127 V / 50 - 60 Hz alternating current
Standard Equipment:
- Coupling groove part DN20
- Installed in a metal housing
- Paint: orange (RAL 2004)
- Operating manual
