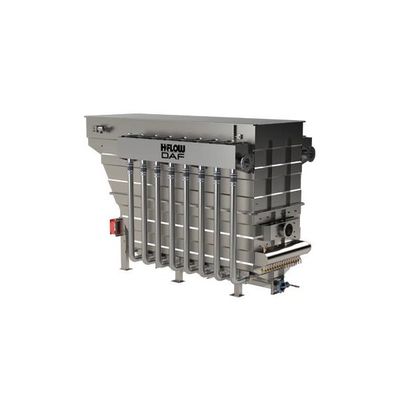

H2Flow - Model Gamma Series -Dissolved Air Flotation (DAF) System

SHARE

The Gamma flotation units are designed to treat wastewater with light to medium solids loading and very high flows. The capacity of the Gamma units range from 990 usgpm to 2425 usgpm (225 to 600 m3/hr). The Platepack System multiplies the separation surface for effective separation, making it possible to treat a large amount of wastewater in a small footprint. The solids float to the surface and are collected by the sludge rake mechanism and transported to the sludge hopper with a low friction scraper system. The collected sludge is transported with a sludge pump to a sludge tank or dewatering.

Most popular related searches
dissolved air flotation system
flotation system
dissolved air flotation
auger drive
skimmer system
recirculation pump
sludge collection
DAF system
sludge pumping
sludge thickener
  • Suitable for low to medium polluted wastewater and very high flows
  • Compact design, small footprint compared to capacity
  • Platepack System for optimum separation performance
  • Low maintenance through low friction skimmer system with internal sludge collection chamber
  • Adjustable double length weir tray
  • Efficient air/water saturation system
  • Completely manufactured out of stainless steel

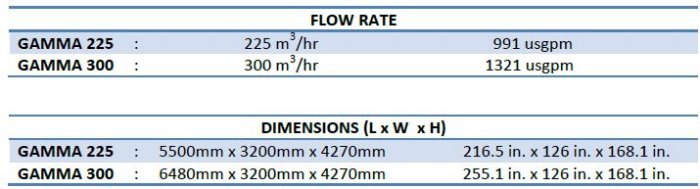

Construction Details

  • Skimmer and Auger Drive Model: NORD
  • Auger Drive Model: NORD
  • Recycle Pump: Goulds or equal
  • Bottom Valve: Keystone or equal
  • Stairs and Sidewalk (Optional): L-­‐Shape, 800 mm width

Electrical and Controls

  • Power Supply: 230V, 480V or 575V, 3 phase, 60 Hz
  • Recirculation Pump: 1 duty, standby optional
  • Pneumatic Panel: 24 VDC
  • Local Control Panel: Optional

Material of Construction

  • DAF Tank: 304 SS, optional 316 SS
  • Static Sludge Thickener: 304 SS, optional 316 SS
  • Skimmer System: SS with fiberglass blades
  • Chain: Plastic
  • Chain Wheel: Plastic Recirculation Pump: AISI 316 SS
  • Auger 304 SS, optional 316 SS
  • DAF Cover (Optional): Plastic or SS
  • Lifting Lugs: 304 SS
  • Dissolved Air Make Up System: 304, optional 316 SS
  • Aeration Valves Stainless steel
  • Pneumatic Panel: Powder Coated steel
  • Bottom Valve (Butterfly): Body cast iron GGG-­‐50, disc 316 SS, seal EPDM
  • Stairs and Sidewalk (Optional): Galvanized steel or fiberglass
