H2Flow - Model Alpha Series -Dissolved Air Flotation (DAF) System

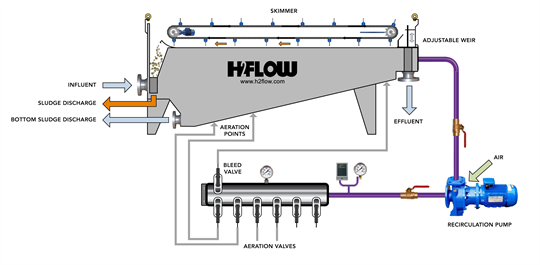

The Alpha flotation units are designed to treat wastewater with high solids loading. The capacity of the Alpha units range from 9 usgpm to 880 usgpm (2 m3/hr up to 200m3/hr). The Alpha series are designed to create the best conditions for easy separation of the solids. The open style design with the large free surface area and long retention time guarantee optimum separation performance. The solids float to the surface and are collected by the sludge rake mechanism and transported to the sludge hopper with a low friction scraper system. The collected sludge is transported with a sludge pump to a sludge tank or dewatering. The Alpha+ flotation unit is equipped with a sludge conveyor for discharge of heavy solids.
- Suitable for heavily polluted wastewater
- Large free surface area and long retention time for optimum separation performance
- Low maintenance low friction skimmer system with internal sludge collection chamber
- Adjustable double length weir tray
- Efficient air/water saturation system
- Completely manufactured out of stainless steel
- Units are available pre-installed in an ISO shipping container, plug and play
Construction Details
- Skimmer Drive Model: NORD or equivalent
- Auger Drive Model: NORD or equivalent
- Recycle pump : Regenerative turbine or centrifugal pump
- Bottom Valve: Keystone or equal
- Stairs and Sidewalk (Optional): L-Shape, 800 mm width
Electrical and Controls
- Power Supply: 230V, 480V or 575V, 3 phase, 60 Hz
- Recirculation Pump: 1 duty, standby optional
- Pneumatic Panel: 24 VDC
- Local Control Panel: Optional
Material of Construction
- DAF Tank: 304 SS, optional 316 SS
- Static Sludge Thickener: 304 SS, optional 316 SS
- Skimmer System : SS with fiberglass blades
- Chain: Plastic
- Chain Wheel: Plastic
- Recirculation Pump: Stainless steel with SS shaft and impeller
- DAF Cover (Optional): Plastic or SS
- Lifting Lugs: 304 SS
- Dissolved Air Make Up System: 304 SS, optional 316 SS
- Aeration Valves: Stainless steel
- Pneumatic Panel: Fiberglass
- Bottom Valve (Butterfly): Body cast iron GGG-50, disc 316 SS, seal EPDM
- Stairs and Sidewalk (Optional): Galvanized Steel or fiberglass
