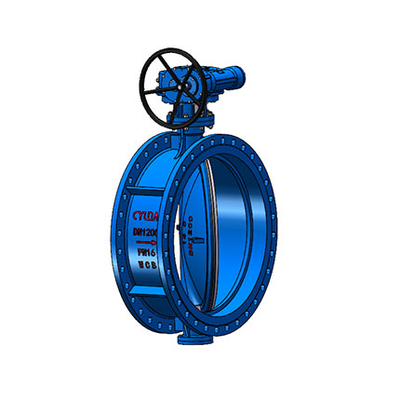

Yuda - Model DN600-DN2000 D343 -Double Flange Butterfly Valves

SHARE

Design: BS EN593 or API609. Flange: EN1092-1 /GOST 33259-2015 o/ ASME B16.5/ASME B16.47. Face to Face: EN558-1-Series 13; Series 14. Materials: WCB/LCB/LCC/LC1/CF8/CF8M/SS321/SS904L.

Most popular related searches
butterfly valve
eccentric butterfly valve
flanged butterfly valve
electric actuator
pneumatic actuator
butterfly valve flange
hot gas
Briefs
  • Triple eccentric design;
  • Bidirectional type zero leakage
  • Size rage from DN 600—DN 2000mm
  • Pressure rating: PN10 – PN25 from DN 600-DN 2000mm PN 40 for DN 200-DN 1200mm
  • Applications: water, hot water, oil and gas etc.

  • Electric actuator / pneumatic actuator/ bare shaft / gearbox +ready flange
  • Design and manufacture as per BS EN593
  • Face to face dimensions as per BS EN558 Series 13
  • Flange dimensions as per Gost 33259-2015
  • Pressure test as per BS EN12266-1
